High capacity available for household appliance with 12 pcs heads pick and place machine
Product representation

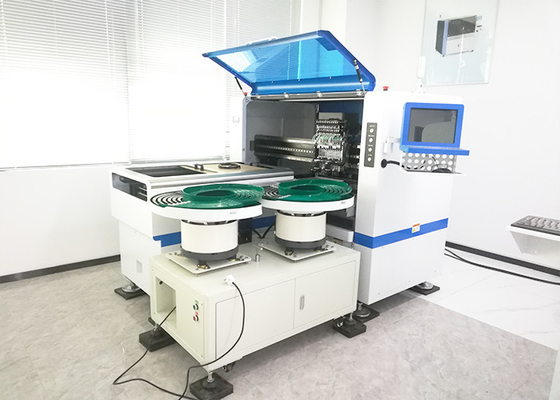

Multifunctional pick and place machine E8S apply to a lot of products, including Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc. With high capacity of 45000 CPH, 28 feeders and 12 pcs heads, using group picking and separately placing, separately placing and separately picking.
Features
- Single module magnetic linear motor multifunctional pick and place machine.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Exclusive Patented Technology:
- Electronic feeder feeding system.
- Vision alignment flight identification, Mark correction.
- Non- stop material re-loading function.
- Auto-optimization after coordinates generated, etc.
Machine parameter
| Model |

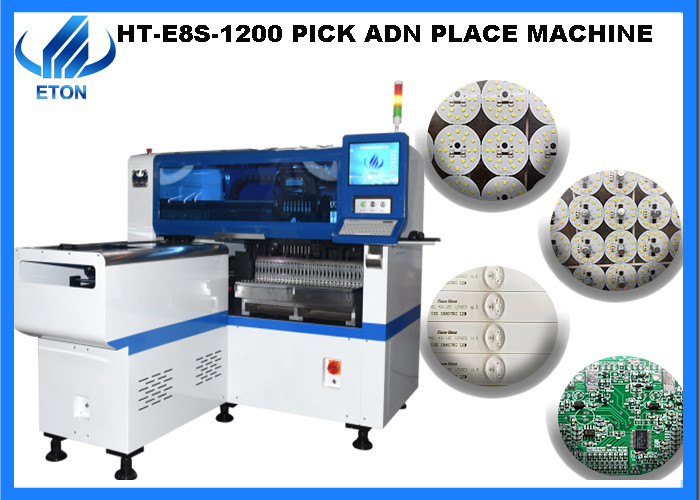

HT-E8S-1200 |
| Dimension |
2550mm*1650mm*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max:1200*500mm
Min:100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separately placing, Separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting speed |
45000CPH |
| No. of feeders station |
28PCS single module |
| No. of head |
12 PCS single module |
Company profile
SHENZHEN ETON AUTOMATION EQUIPMENT CO.,LTD
ETON was founded in 2011, is a company that keen on manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place and SMT peripheral automation equipment.
Exhibition
We have been trade with more than 20 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Package and delivery
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
FAQ
Q1. How was your services?
A1. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine, as free training for installation, maintenance and free up- grade, if you bug our machine and get problem of it you can contact us, we will arrange our engineers to help you immediately.
Q2. How long can the delivery date take?
A2.If have stock the delivery date is about 20 days, others is according to the actual situation.
Q3. What terms that you accept it as the quoted price?
A3. We accept EXW as the quoted price.
Q4. What is your usual payment term?
A4. Our usual payment term is T/T, that requires to pay 30% in advance, and pay the balance off before the delivery of the goods.
Q5. How can I look around your industrial park if I am on aboard?
A5. If you have Chinese agent we can make an appointment to show you our company, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
Q6. What is your merits of the machine to others production?
A6. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 50000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
