Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Mounting Speed: | 200000-250000CPH |
|---|---|---|---|
| Feeders Station: | 68PCS | Pcb Thickness: | 0.5-1.5mm |
| PCB Clamping: | Vacuum Adsorption, Cylinder Splint, Adjustable Track Width | PCB Length Width: | 250mm*any Length |
| Mounting Mode: | Group Picking And Group Placing | No.of Camera: | 5 Sets |
| High Light: | 68 Heads Pick And Place Equipment,Multi Functional Pick And Place Equipment,Flexible Strip Smt Placement Machine |
||

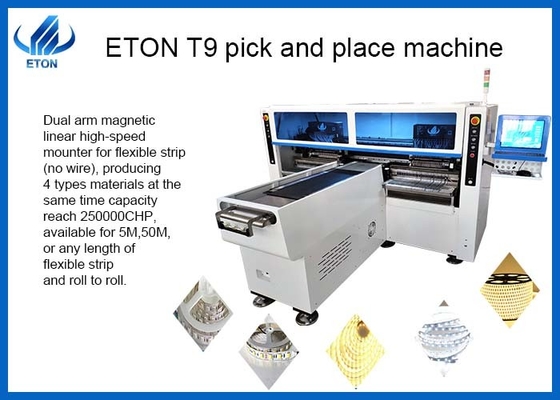

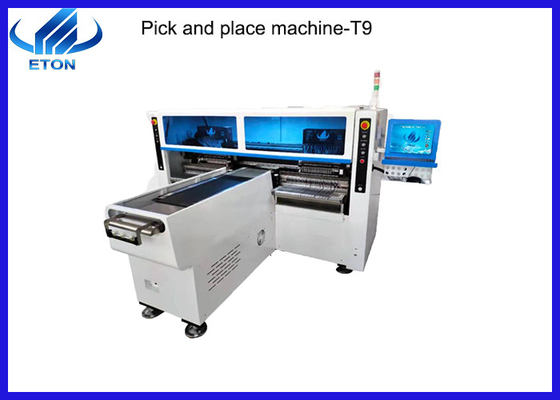

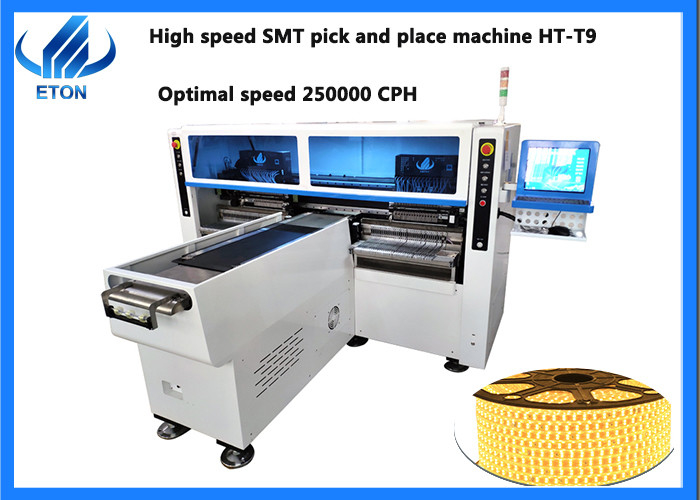

multi-functional Full-Automatic of flexible strip with 68 Heads Pick And Place Machine
1.Introduction of product
●Dual arm magnetic linear high-speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000CHP, available for 5M,50M, or any length of flexible strip and roll to roll.
●Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
●The PCB size is 250*any length.
●It has 68 PCS feeders station.
●Vacuum adsorption, cylinder splint, adjustable track width.
2.Features
Producing with 4 types materials at the same time with high capacity, available for 5 M, 50M or any length of flexible strip and roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:group to pick and group to mount.
The speed can reach 250000CPH.
It has 5 PCS cameras to work.
3. Machine parameter
| T9 | ||
| PCB | PCB length width | 250*any length |
| PCB thickness | 0.5-1.5mm | |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
| Mounting mode | Group to pick and group to mount | |
| Vision system | Mounting height | ≤5mm |
| Repeat mounting precision | ±0.02mm | |
| No. Of camera |
5 sets of imported camera (Vision alignment ,mark correction) |
|
| Mounting speed | 200000-250000CPH | |
| Feeding system | No. Of feeders stations | 68 PCS |
| No. Of nozzles | 68 PCS | |
| Feeding way | Electric feeder with double motor | |

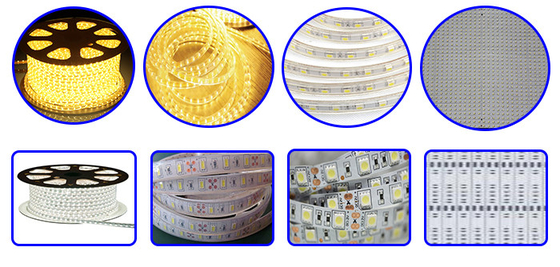

4. Product application
5. Company introduction, exhibition, certificate
6. Package and delivery
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
7. Service
8. FAQ
1.what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
2.Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
3.This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
4.What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
5.Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
