Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Mounting Speed: | 200000-250000CPH |
|---|---|---|---|
| Feeders Station: | 68PCS | Pcb Thickness: | 0.5-1.5mm |
| PCB Length Width: | 250*any Length | PCB Clamping: | Vacuum Adsorption, Cylinder Splint, Adjustable Track Width |
| Mounting Mode: | Group Picking And Group Placing | Components Space: | 0.5mm |
| High Light: | 0.5mm Components Pick And Place Machine,Vacuum Adsorption Pick And Place Machine,68 Heads Smt Mounter Machine |
||

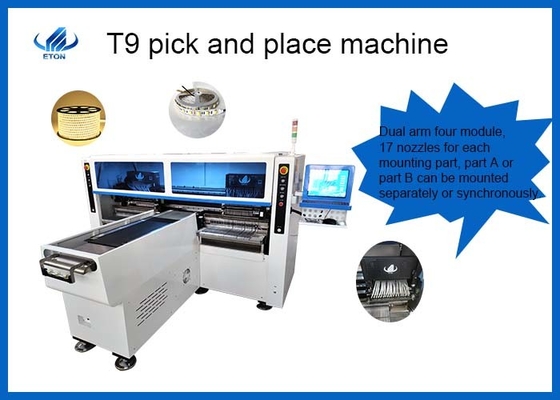

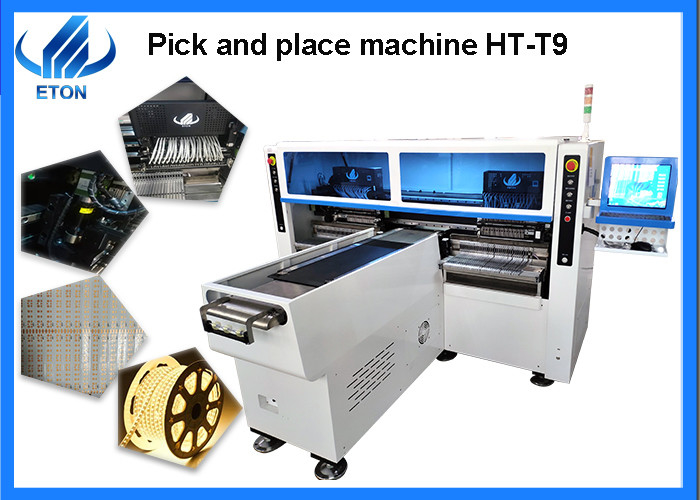

high speed multi-functional Full-Automatic with 68 Heads Pick And Place Machine
1. Introduction of product
●Dual arm magnetic linear high-speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000CHP, available for 5M,50M, or any length of flexible strip and roll to roll.
●Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
●The PCB size is 250*any length.
●It has 68 PCS feeders station.
●Vacuum adsorption, cylinder splint, adjustable track width.
2. Features
Producing with 4 types materials at the same time with high capacity, available for 5 M, 50M or any length of flexible strip and roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:group to pick and group to mount.
The speed can reach 250000CPH.
It has 5 PCS cameras to work.
3. Machine parameter
| T9 | ||
| PCB | PCB length width | 250mm*any length |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
| PCB thickness | 0.5-1.5mm | |
| Mounting mode | Group picking and group placing | |
| Vision system | No.of camera | 5 sets(vision alignment, mark correction) |
| Repeat mounting precision | ±0.02mm | |
| Mounting height | ≤5mm | |
| No.of feeder station | 68PCS | |
| No.of nozzles | 68PCS | |
| Air supply | 0.4-0.6mpa 150N/Min | |
| Mounting speed | 200000-250000CPH | |
| components | LED3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers, etc. | |

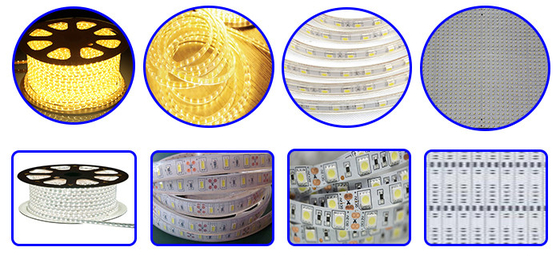

4. Product application
5. Company introduction, exhibition, certificate
6. Package and delivery
7. Service
8. FAQ
1.Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
2. Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
3.Are you a reliable cooperator?
Yes, we specialized in SMT parts over more 10 years in Shenzhen China. We participated in many exhibitions in abroad and domestic. We have a more 50000㎡industrial park, total 7 building and 300-500 employees. We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. And our high speed machines’ speed can reach 250000CPH, broken the world record.
4.This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
5.What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
