Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Feeders: | 40 PCS |
|---|---|---|---|
| Nozzles: | 10 PCS | Speed: | 30000-35000CPH |
| PCB Size: | Max:1200*550mm Min:100*100mm | Power Consumption: | 5KW |
| Warranty: | 1 Year | Weight: | 2000KG |
| Usage: | LED Lamp Bulb | Application: | SMT Led Light Production Line,LED Production |
| High Light: | 35000CPH Smd Placement Machine,Linear Motor Smd Placement Machine,5KW Automatic SMT Mounting Machine |
||
high speed 0402 smd placement machine automatic pick and place machine cost in SMT line

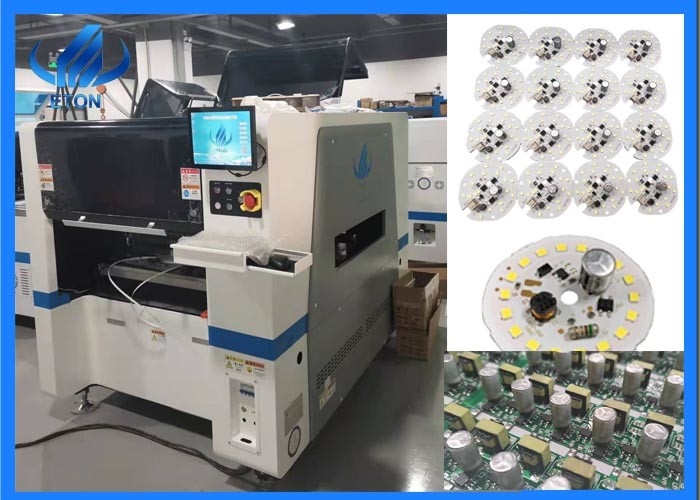

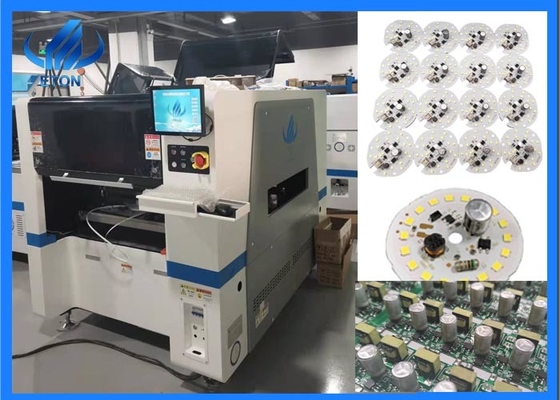

Product details of SMT led mounting machine:
mounting speed:40000cph
PCB size:450*350mm
heads: 10 pcs
feeder station:32 PCS
Drive way:high-end magnetic linear motor+servo motor
technical parameter of SMT pick and place machine
| Model | RT-1 |
| PCB | |
| PCB Length Width | Max:450*350mm Min:80*80mm |
| PCB Thickness | 0.1-6mm |
| PCB Clamping | Pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 PCS |
| Accurate image recognition | |
| Vision alignment, MARK correction | |
| Mounting Height | ≦15mm |
| Mounting Speed | 40000 CPH |
| Components | LED , capacitors, resistors, shaped components, etc. |
| Components Speed | 0.2mm |
| No. of Feeders Station | 32 PCS |
| No. of nozzles | 10 PCS |
| Power | AC 380V |
| Power Consumption | 4kw |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Electric feeder with double motor |
Provide A whole SMT line layout:
pick and place machine
automatic stencil printer
reflow oven
SMT pcb conveyor
loader machine & unloader machine
SMT line,SMT machine,etc
Application of SMT line:
Street light, panel light, street light, flexible light strip, TV lens,
Packing & Exhibition :
Our packing method is vacuum wooden case packing.
ETON advanced technology and innovation drives the revolution of market rapidly,we hold exhibitions at home and abroad every year
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
