Product Details:
Payment & Shipping Terms:
|
| Size: | 2550*1650*1550mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max:1200*500mm; Min:100*100mm | Mounting Speed: | 45000CPH |
| Head: | 12pcs | Warranty: | 1 Year |
| High Light: | Single Module Led Tube Mounting Machine,45000CPH Led Tube Mounting Machine,12 Head Pick And Place Mounter |
||

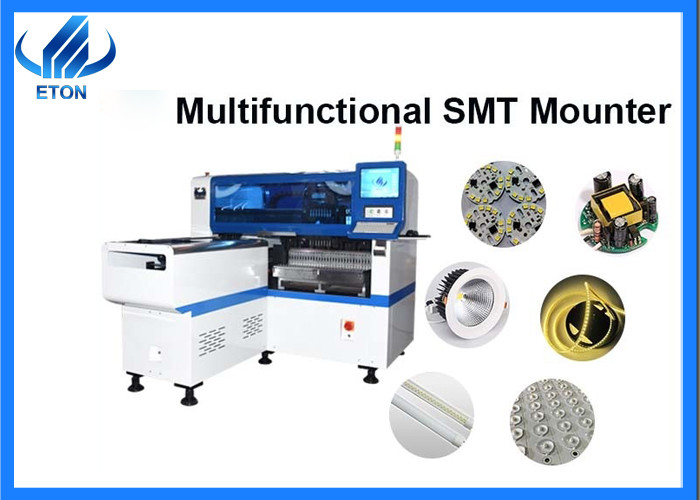

Single module Led tube 12 head atomatic pick and place machine
1.Product introduction:
(1) HT-E8S:Single module magnetic linear motor multifunctional pick and place machine
(2) Mounting components:Led chip,capacitors,resistors,lens,IC,shape components,etc.
(3) Components:Min.size0402 Max.height 15mm
(4) Application:power drive. Electric board. Lens. DOB bulb.linear bulb. Household appliance etc.
2.Machine technical parameter:
| Model | HT-E8S-1200 |
| Dimension(L*W*H) | 2550*1650*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*500mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing, separately picking and separately placing |
| Mounting height | <15mm(automatic changing) |
| Mounting speed | 45000cph |
| Power consumption | 4KW |
| No. Of feeders station | 28 PCS single module |
| No. Of head | 12 PCS Single module |
3.Application:
This machine designed for many kinds of PCB boards. Using newest high magnetic linear motor, so the speed and accuracy is better than normal multi-functional machines.It mainly suitable for LED tube,flexible strip light, lens, power drive and so on.
4.Company profile:
Shenzhen ETON Automation Equipment Co.,Ltd.Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.,
(1)Experience: It has more than ten years of research and development experience and LED industry service experience.
(2)Industrial park: With an industrial park of 50,000 square meters, focusing on the R&D and production of the SMT industry.
(3)Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 20 countries.
5.Exhibition:
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including foreign exhibitions(except the epidemic period) and domestic exhibitions.
Foreign exhibition:India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Domestic exhibition: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition etc.
6.Packing:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging.
Step 2. Add foam+film packaging.
Step 3. Unique tin foil packaging.
Step 4. customized Strong wood carton packing.
7.Our service:
1.Free Warranty: one year warranty factory services.
2.Free installation:on-site free installation to ensure smooth production.
3. We can configure the production line for you according to your product requirements.
4. Free Software Upgrade.
5. Free Technical Training.
8.FAQ:
(1). How about the Training?
We provide the online remote training service, and we will offer you the operating video and manual for user’s repeatedly learning.
(2).How about the After-sale Service?
We provide one year warranty, during the warranty period, if any wrong, we will send the accessories free of charge.
(3).why choose us?
ETON is the famous brand for pick and place machine. We have decades experience in this field. 80% larger and listed led factory are our client and occupied a vast foreign LED market.
(4).Which language is the software? Can you provide software updates?
English and Chinese is OK. Free to upgrade software for lifetime.
(5). Can we customize the machine?
Of course. All of our machine can be customized.
