Product Details:
Payment & Shipping Terms:
|
| Dimention: | 2550*1650*1550 | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max：1200*500mm Min：100*100mm | PCB Thickness: | 0.5-5mm |
| System: | Windows 7 | Software: | R&D Indepentently |
| No.of Camera: | 2 Sets Of Imported Camera | Mounting Speed: | 45000CPH |
| Components: | LED Chip, Capacitors, Resistor, IC, Shaped Components.etc. | Electrical Control: | Indepentent Research And Development By Eton. |
| High Light: | Capacitors Led Tube Production Line,45000CPH Led Tube Production Line,5mm PCB SMT Mounter |
||
SMT multifuncational placement machine Camera:
When the components are calibrated, the top-view camera is generally used,
which has the functions of front light, side light, backlight and online light,
and can identify various components. If the size of the component is too large and exceeds one image of the camera,
the top-view camera can also analyze and correct after taking multiple images.

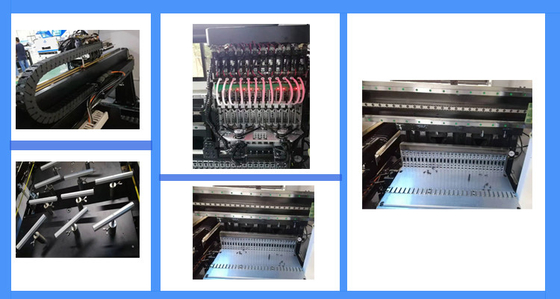

The placement head of some multi-function placement machines is also equipped with a placement head moving camera,
which can identify various smaller components.
One placement head controlled by one servo motor, the mounting precision is so high.

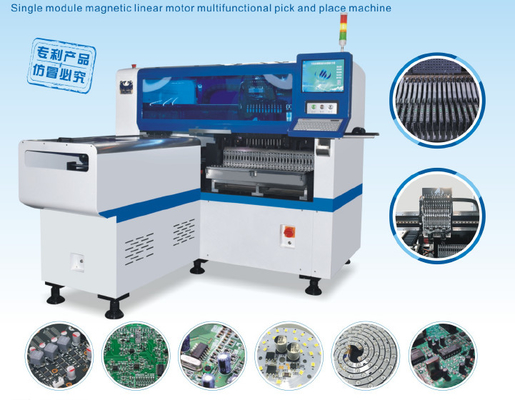

Magnetic linear motor in X,Y axis, the mounting head move so fast and correct, make sure the high speed and precision.
Application is so wide, can mount lens, led chips, IC, shaped components, resisors......
Intelligent system: Camera system-vision alignment flight indentifaction
Feeding system-highspeed and correctly
Automatic replenishment system.......

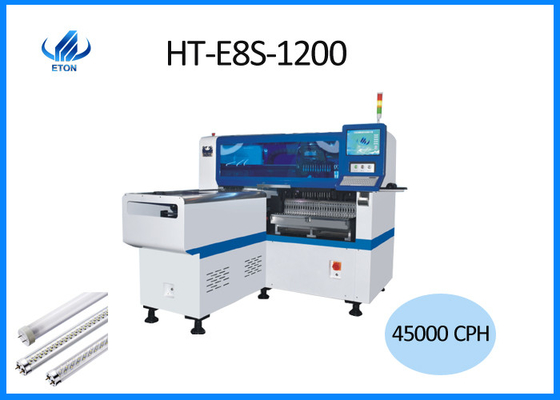

| Model | HT-E8S-1200 |
| Applicable componets | LED chips/capacitors/resistor/IC/shaped components...... |
| MIN Componets size | 0402 |
| PCB Thickness | 0.5-5mm |
| PCB SIZE | 100*100-1200*500mm |
| No.of placement head | 12PCS |
| Mounting speed | 45000CPH |
| X,Y,Z Axis drive way | High-end magnetic Linear motor+servo motor |
Notes: The above mounting speed is optimal speed. actual speed based on components,
the time of going pcb board, no. of components, etc.
Competitive price: We are directly manufacture of the ETON pick and place machine,
so we can give you the best competitive price with high quality materials.
Service team: We can provide One-stop solution for you. Great suggestions of smt
production line based on your site and budget.
High efficiency: Also our machine parts are made by ETON, so it's convenient to control
the time schedule and quality timely.
Rich experience: In SMT machine, over 11 years. we are leader manufacturer of SMT machine in China.
Stronger Manufacturing capacity: 52000 square meter Industry Park in Jiangxi Province.
ETON is the biggest smt machine in China, produce smt machines, such as: conveyor, stencil printer,
smt mounter, loader, stencil printer, etc. suitable for led filed, household appliance, electric board......
ETON is Top brand of smt machine in China. The machines is very popluar in ovearsea, such as India, Turkey, Egypt,
Pakistan, Istanbul, Moscow, Russia, Hanoi, Vietnam and other places.
In addtion, In India, Turkey, Egypt, ETON have local engineer can provide the best serive at timely.
|
Q: What is your delivery time …?
A: Usually, if you pay and we get the payment, we can arrange delivery immediately. Cause ETON is the biggest manufacturer of smt machine in China. Have 52000 square meters Industry park. So the machine is in stock. |
|
Q: Do you also give training for customer?
A: Sure, we have best servie, provide free training. Also provide free installation.
|
|
Q: Can you help us in payment ? A: Payment :L/C, T/T
|
|
Q: In India you don’t have dealers?
A: we don't have dealers in India.but we have office in India (Delhi, Mumbai, Daman)
|
|
Q: Choose which mode of transportation? A: Our modes of transportation are flexible, including water, land and air transportation.
|
