Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
|---|---|---|---|
| Speed: | 250000CPH | PCB Size: | 1200*330—100*100mm |
| Feeders: | 68 PCS | Nozzles: | 68 PCS |
| Warranty: | 1 Year | Power: | 380AC 50HZ |
| Application: | SMT Production Line | Applicable Components: | 0402,SOP,IC,0805 |
| Weight: | 1800KG | Precision: | 0.02mm |
| Usage: | Special For The LED Strip,LED Tube Large Qty Production,Circuit Board Assembly/SMD/LED Tube Large Qty Production | Condition: | 100% Original |
| High Light: | 6KW SMD Pick And Place Machine,250000CPH SMD Pick And Place Machine,SIRA Led Strip Making Machine |
||

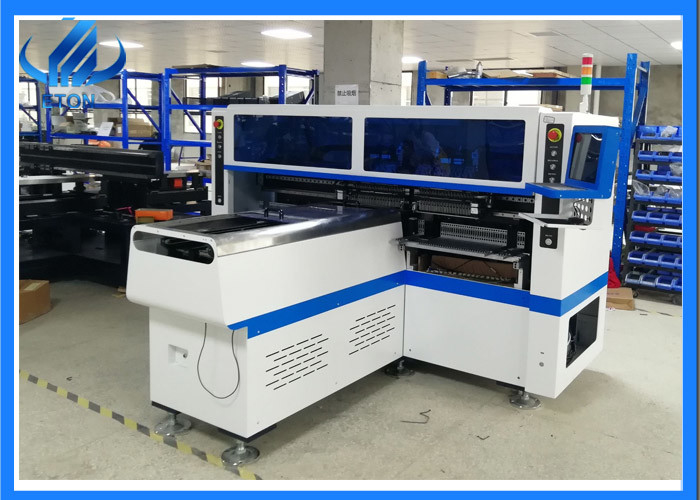

SMD pick and place rgb led strip light making machine in led lamp production line
Advantages of pick and place machine
| Vision system | vision alignment ,mark correction with 5 sets of imported camera |
| High speed | Dual module professional mounter,17 nozzles for each mounting module;250000CPH |
| High precision | XYZ axis by servo motor to drive ,Ensure that the machine can run at high speed for 24 hours. |
Technical parameter of SMT pick and place machine
| PCB | PCB length width | Max:350*1200mm min100*100mm |
| PCB thickness | 0.5~5mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 200000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 34PCS | |
| No.of nozzles | 68PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 6KW |

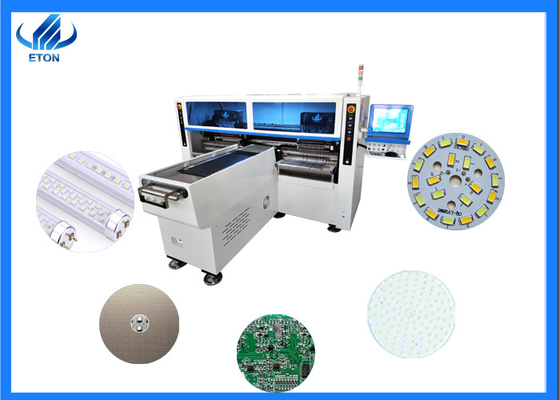

Application of SMD pick and place machine
LED tubes, panel lights, flexible light strips, street lights, etc.
SMT production line solution projects
| SMT production process | ||
| process | Step. | details |
| Step 1 | Solder paste Printing | Operate the stencil printer to print the solder paste onto the PCB |
| Step 2 | Mounting Part | The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB |
| Step 3 | Reflow Soldering | The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB. |
| Step 4 | Testing | Check whether the PCBA is misaligned or shift. |
