| Dimension: | 1200*1930*2500 | Total Weight: | 2500kg |
|---|---|---|---|
| PCB Length Width: | MAX:450*300mm MIN:80*80mm | PCB Thickness: | 0.1-6mm(if<0.6mm, Need Jig) |
| No.of Camera: | 4pcs | Mounting Speed: | 80000CPH |
| No.of Feeders Station: | 64pcs | No.of Head: | 20pcs |
| Power Consumption: | 6kw | XYZ Axis Drive Way: | High-end Magnetic Linear Motor |
The workflow of the SMT placement machine is summarized as: 1.Board feeding and mark recognition
2.Automatic learning 3.Nozzle selection 4.Feeder selection 5.Component picking
6.Component detection for evaluation 7.placement 8.Nozzle return 9.Out of the board
Multi-Funcational Mounter, making many kinds of led lights and kinds of electric board. cause our smt machine
with high precision and high quality.

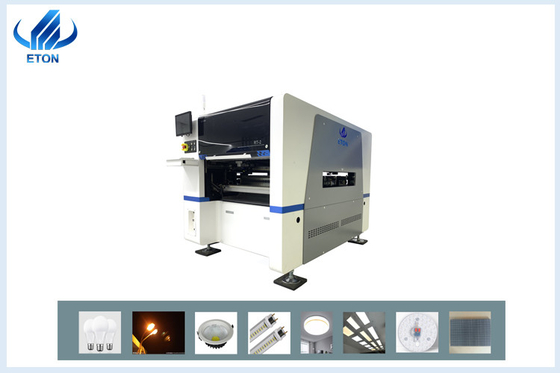

NEW Design Mounter RT-2 Omnidirectional.
Placement precision suitable for 0402 components.
Intelligent vision system, make sure the place components is correct.
The machine high speed and high precision, cause Magnetic linear motor and servo motor
Update many types, have great stability.
| Model | RT-2 |
| PCB Thickness | 0.1-6mm(if<0.6mm, need jig) |
| MIN Componets size | 0402 |
| No.of camera | 4pcs vision alignment, mark correction |
| No.of feeders station | 64pcs |
| No.of placement head | 20PCS |
| PCB length width | 80*80-450*300mm |
| Mounting speed | 80000CPH |
| Feeding way | electric feeder with double motor |
Notes: The above mounting speed is optimal speed. actual speed accoring to components,
the time of going pcb board, mouting product, no. of components,etc.
ETON has been committed to the development and production of SMT machines in 2007.
Establishment in 2011, ETON set up more than 10 years, Top brand in China.
Stronger manafacturer capacity,machine capacity more than 50 units/month.
Have more than 50000 square meter Industrial park in Jiangxi Province.
Local engineer provide door to door service, provide great and professional service.
SMT production line solution
ETON provide one-stop service, We can provide the smt machine, from star to the end, like loader, conveyor,
mounter, solder paste, reflow oven; Can recommend smt production line solution according to customer budget
and factory area, etc.
Certification
ETON Have many Patent, ensure he machine have high quality, including practical, software copyrights,
invention patent;
|
Q: About the other operational cost.. the expected offtime for regular mainenance. A:
The machine is stable and easy to operate. The operating cost depends on your own local labor costs. A few minutes of regular maintenance is enough. |
|
Q:How many models your company making …? A: For pick and place machine, we have two series, one of multifunctional pick and place machine, one of high-speed pick and place machine. also we can smt machine product line machine, such as conveyor, reflow oven, stencil printer, loader, etc.
|
|
Q: In your website I saw a demo of a smt line in India. is there anyway to visit this place in here in India? A:
Yes, we have customer in India. I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients. I think that You wouldn't want your competitors to visit your manufacturing site. please understand.
|
|
Q: What is next process after mounting ? A:
after mounting then testing the mounting placement. then the PCBA go into relow oven heat the solder paste to solder the componet to the PCBA.
|
|
Q: Air is required for this machine ? A: This machine need Air compressor.
|
