Product Details:
Payment & Shipping Terms:
|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Dimension (L*W*H): | 1200*1930*1500mm |
|---|---|---|---|
| Total Weight: | 2500kg | PCB Size: | Max:450*300mm Min:80*80mm |
| PCB Thickness: | 0.1-6mm(If<0.6mm Need Jig) | PCB Clamping: | Pneumatic |
| No.of Feeders Station: | 64 PCS | No.of Head: | 20PCS |
| Mounting Speed: | 80000 CPH | Power: | AC 380 V |
| Operating Environment: | 6 KW | Warranty: | 1 Year |

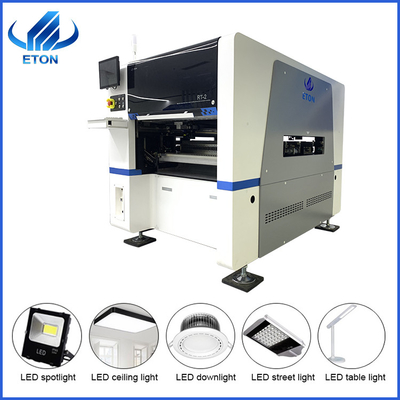

New high-precison pick and place machine for LED display PCB Board Assembly Line Machine
Features of machine

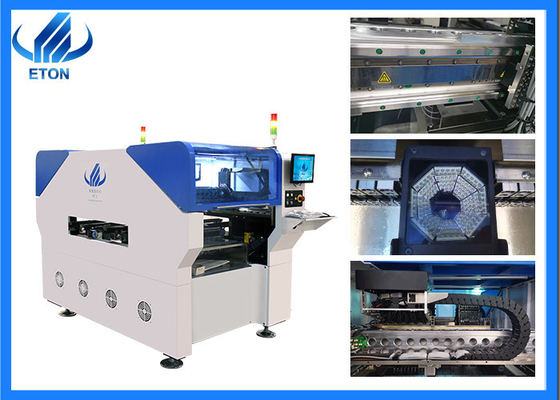

1.This is multifunctional machine rt-2 with double module,total 20 head,each part 10 head, can produce
two types of products at the same time.
2.The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high
accuracy.
3.It's intelligent,can produce different types of LED light and electric board,such as bulb ,strip, Panel,
Downlight, streetlight,power driver, other electronic boards, etc
4.Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
5.It is highspeed machine,the optimum speed is 80000CPH.(For led chips around 50000CHP,for driver
around 35000CPH.)

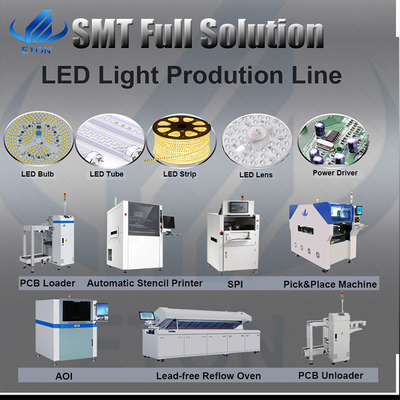

SMT line

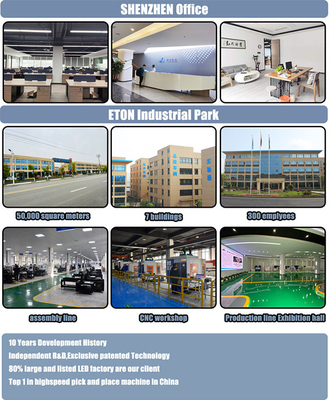

Company Profile
As a leading global photoelectric high-speed placement machine brand and a pioneering company in China's
SMT placement machine, ETON products are exported to more than 20 countries and regions such as South
Korea, India, Turkey, Egypt, Tunisia, Vietnam, Russia, Brazil, etc. Independently researched and developed the
world's first technological invention patents and property rights technologies, with 9 invention patents, 12
software copyrights, and 112 utility patents.
On this basis, ETON is still making progress and has successfully developed a variety of cost-effective SMT
high-speed general-purpose placement machines, which are widely used in lighting, display, electronics, drive
power, home appliances, new energy and other industries
Packing & Delivery
Packaging :vacuum wooden boxes packaging.
Terms of payment:30% depositing on the date of signing contract,70% payment before delivery.
FAQ
1.Why do we adopt the smart electronic feeders?
Our machines adopt the smart electronic feeders which are more stable,universal and intelligent.
The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the
cast and drop of materials effectively.
2.What the highest production capacity and precision of our LED pick and place machine?
Our machine's production capacity can reach 250000 chips per hour. It is the highest capacity in the
field of LED pick and place machine.Our precision can reach 0.02 mm,we adopt visual positioning,
flight identification mark correction and smart industrial control system.
3.What about our technology patents and certificates?
We have got many technology patents which is global first invention. The global first way:Group
picking and group placing. We have rich experience in researching and developing and got SIRA
and CE certificate.We are approved as the national high-tech enter
