| Dimention(mm): | 1200*1930*1500 | Total Weight: | 2000kg |
|---|---|---|---|
| PCB Length Width: | MAX:450mm*350mm MIN:80*80mm | PCB Thickness: | 0.1-6mm (if＜0.6mm Need Jig) |
| Mounting Precision: | ±0.04mm | Mounting Speed: | 40000CPH |
| No.of.feeders System: | 42PCS | No.of .head: | 10PCS |
| Components: | LED Chip, Capacitors, Resistors, IC, Shaped Componets. Etc. | Feeding Way: | Electric Feeder With Double Motor. |
In the smt production line, it is configured after the glue dispenser or solder paste printer,
and is a kind of equipment that accurately places the surface mount components on the PCB pads by moving the placement head.
Omnidirectional mounting components on PCB board.
Application: SMT machine, Mass production, high quality production.
High performance: cause magnetic linear motor, servo motor, system of feed system and replenishment system.
The machine Parts, most of produce by ourself.(ETON)
More Details for machine parameter
| Model | RT-1 |
| PCB size | 80*80-450*350mm |
| Suitable for Componets | Capacitors, LED chip, resistor, shaped components... |
| Software | ETON R&D |
| XYZ Axis drive way | servo-motor, High-end magnetic linear motor |

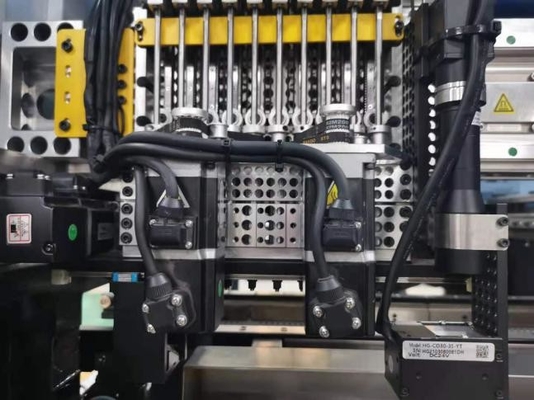

| Placement head | 10PCS |
| Dimension | 1200*1930*1500mm |
| Power consumption | 4KW |
| Components space | 0.2mm |

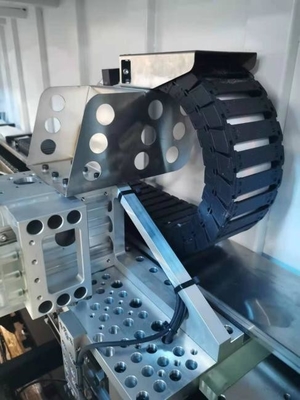

Advantage for machine parts
ETON Machine can use for led filed, household appliance, electric board......, The machine have high quality
and high capacity by industry park, many machine in stock.

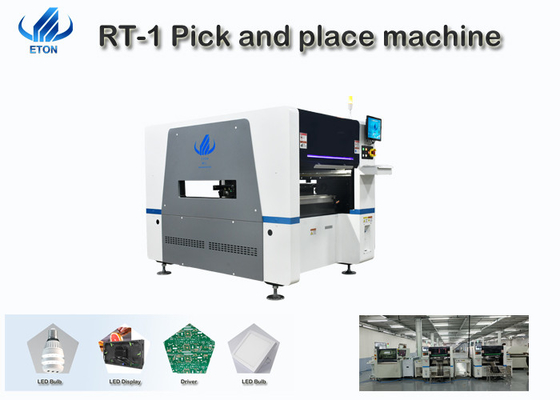

This model of RT-1 is best seller machine, very inellegent and economic, apply for many small pcb board.
very popluar in Tunisia, Egypt, Inida, Turkey, Vietnam......
We provide One-stop sevice: Pre-sale, On sale, After sale. For example: Free install, local office, smt production line......
New bigger industrial park, over 50000 suqare meter. 7 building in there.
Rich experience and prodessional R&D department. provide high quality for the machines.
Certification: 9 invention and 112 practical patents,12 software copyrights.
Competitive price: Directly manufacture of the SMT machine by ourself , so we can get the best price .
ETON R&D super high speed pick and place machine, 250000 CPH, fastest in all over the world.
SMT production line solution for RT-1
|
Q: How is the warranty?
A: The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service. |
|
Q:Does your machines have quality certificates?
A: We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 10 years) in LED light production line program. |
|
Q:Are you a trade company or a manufacturer?
A:We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products. |
|
Q: What is your payment terms?
A: 100% payment before delivery or 50% deposit in advance and the rest before shipment.
|
|
Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials. |
