Name: | Pick And Place Machine | PCB Thickness: | 0.5~5 Mm |
---|---|---|---|
Total Weight: | 1250kg | Feeders: | 64 PCS |
Dimension: | 1200*1930*1500mm | PCB Size: | 450*300mm |
Warranty: | 1 Year | Nozzles: | 20 PCS |
Application: | SMT Production Line,LED Pick And Place,smd Pick Place | Name: | LED Chip Mounter |
Weight: | 2500KG | Applicable Components: | 0402,SOP,IC,0805 |
67000CPH 20 heads smt smd components soldering machine in led lamp production line
Features of SMT pick and place machine
Double module smd mounitng machine
Driver way:magnetic linear motor + servo motor
Mounting mode:group picking and separately placing/separately picking and separately placing
Software: R&D ondependently
Electronic feeder feeding system
Easy installation
Longer life
Our Services
Technical parameter of SMD pick and place machine
Dimension | |
Length | 1200mm |
Width | 1930mm |
Height | 1500mm |
Total Weight | 2000kg |
PCB | |
PCB Length Width | Max:450*300mm Min:80*80mm |
PCB Thickness | 0.1-6mm |
PCB Clamping | Pneumatic |
Mounting Mode | Group picking and separate placingseparate picking and separate placing |
O.S. | |
System | Windows7 |
Software | R&D independently |
Display | Touch screen monitor |
Input Device | Keyboard, Mouse |
Vision System | |
No. of Camera4 | PCS |
Accurate image recognition | |
Vision alignment, MARK correction | |
Mounting Precision | ±0.04mm |
Mounting Height | ≦15mm |
Mounting Speed | 67000 CPH |

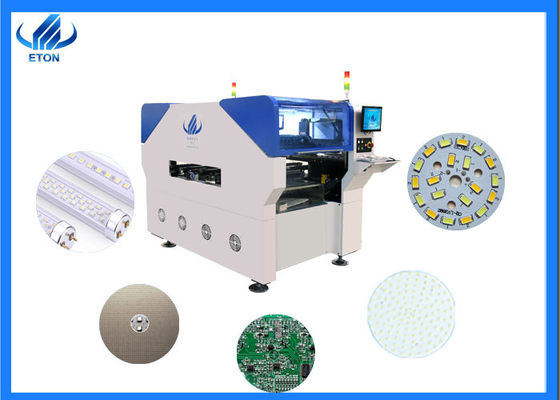

pick and place machine

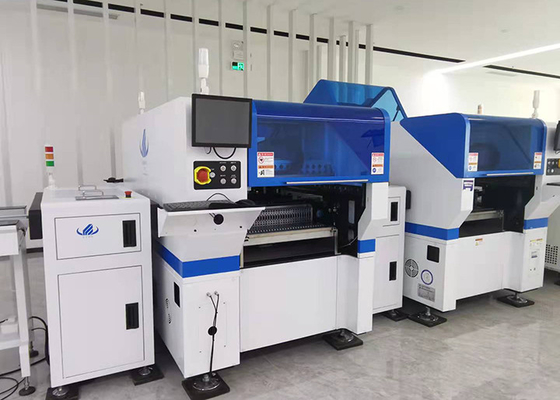

SMT line

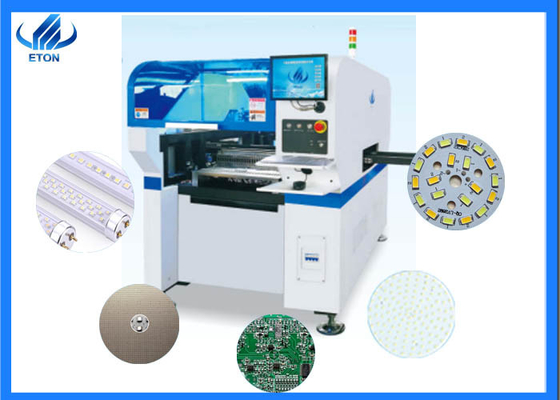

Application of SMT line
Remarks
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
