Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1200*1930*1500mm | Weight: | 2000kg |
|---|---|---|---|
| PCB Length Width: | Max:450*300mm; Min:80*80mm | Mounting Speed: | 40000 CPH |
| Warranty: | 1 Year | Head: | 10 Pcs |

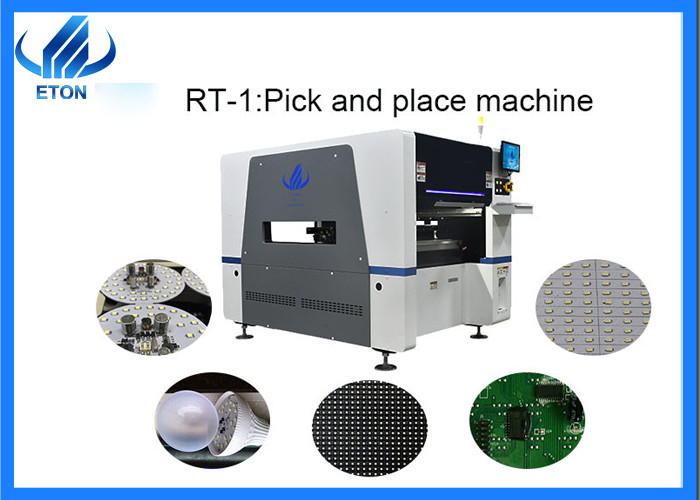

Single module Led bulb 10 head atomatic pick and place machine
1.production introduction:
1. RT-1:Single module magnetic linear motor multifunctional pick and place machine.
2. Mounting components:Led chip,capacitors,resistors,IC,shaped components,etc.
3. This machine belongs to single module.It has 10 head. Apply to led bulb, power driver,street light and so on.
4. This machine mounting speed is 40000CPH.
5. It has 2 sets of camera, high mounting accuracy. Mounting method:group picking and separately place, separately picking and separately place.
2.Application:
Led bulb,power driver,down light,street light and so on
3.Company details:
ETON Company: a leading manufacturer of automatic high speed pink and place machine. The largest high teach Led light making machine manufacturer in China. Obtained a number of intellectual property technologies including 9 Invention patents,112 Practical patents and 12 software copyrights.
ETON Industrial park: There is 5,0000 square meters modern intelligent industrial parks. Having more than 300 employees .Equipped with an advanced processing and manufacturing centers.There are various machine,the fastest capacity reached 250000CPH,which has broken world record.
4.Technical parameter:
| Model | RT-1 |
| Dimension(L*W*H) | 1200*1930*1500mm |
| PCB length width | Max:450*350mm;Min:80*80mm |
| PCB thickness | 0.1~6mm |
| Mounting mode | Group picking and separately placing, separately picking and separately placing |
| No. Of camera | 2 Sets of imported camera.vision for the flight identification,mark correction |
| Mounting height | ≤15mm |
| Mounting speed | 40000cph |
| Power consumption | 4KW |
| No. Of feeders station | 32 PCS single module |
| No. Of head | 10 PCS Single module |
5.Packing:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging.
Step 2. Add foam+film packaging.
Step 3. Unique tin foil packaging.
Step 4. customized Strong wood carton packing.
6.Exhibition:
7.Services:
(1).we can provide SMT line solution with you.
(2).Free Warranty: one year warranty factory services.
(3).Free installation:on-site free installation to ensure smooth production.
(4).We can configure the production line for you according to your product requirements.
(5).Free Software Upgrade.
(6).Free Technical Training.
8.FAQ:
(1).Does your company have other machine or products besides selling pick and place machine.
Yes, of course. For instance, Automatic stencil printer, Reflow oven, LED light production line equipment.
(2).How about the Training?
We provide the online remote training service, and we will offer you the operating video and manual for user’s repeatedly learning.
(3).Why choose us?
ETON is the famous brand for pick and place machine. We have decades experience in this field. 80% larger and listed led factory are our client and occupied a vast foreign LED market.
(4).Can we customize the machine?
Of course. All of our machine can be customized.
(5).How about the warranty?
We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
