Product Details:
Payment & Shipping Terms:
|
Dimension: | 1200*1930*1500mm | Weight: | 2000kg |
---|---|---|---|
PCB Length Width: | Max:450*350mm; Min:80*80mm | Mounting Speed: | 40000 CPH |
Head: | 10 Pcs | Warranty: | 1 Year |

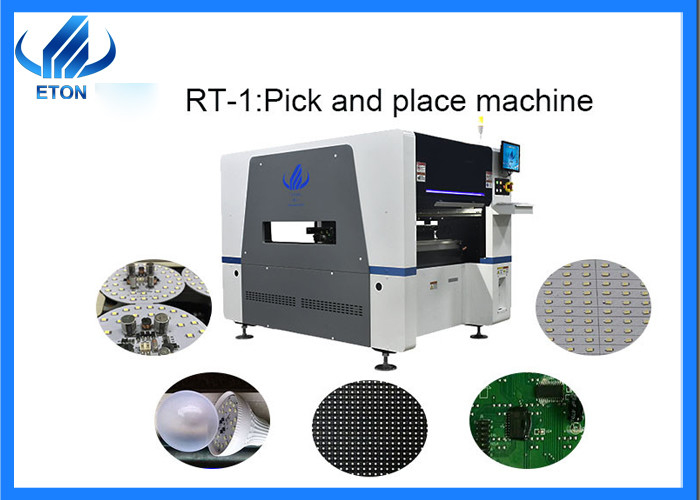

Single module Led bulb 10 head atomatic pick and place machine
1.Production features:
(1). RT-1:Single module magnetic linear motor multifunctional pick and place machine.
(2). Mounting components:Led chip,capacitors,resistors,IC,shaped components,etc.
(3). This machine belongs to single module.It has 10 head. Apply to led bulb, power driver,street light and so on.
(4). This machine mounting speed is 40000CPH.
(5). It has 2 sets of camera, high mounting accuracy. Mounting method:group picking and separately place, separately picking and separately place.
2. Production parameter:
Model | RT-1 |
Dimension(L*W*H) | 1200*1930*1500mm |
PCB length width | Max:450*350mm;Min:80*80mm |
PCB thickness | 0.1~6mm |
Mounting mode | Group picking and separately placing, separately picking and separately placing |
No. Of camera | 2 Sets of imported camera.vision for the flight identification,mark correction |
Mounting height | ≤15mm |
Mounting speed | 40000cph |
Power consumption | 4KW |
No. Of feeders station | 32 PCS single module |
No. Of head | 10 PCS Single module |
3.Application:
This machine has 10 nozzles, Mounting speed reached 40000 CPH
apply to led bulb, power driver, street light , circuit board etc.
4.Company profile:
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present, as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continuously and create superior value for our customers.
5.Exhibition:
ETON is a very strong and powerful company.ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year.
Foreign exhibitions(except the epidemic period):India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Domestic exhibition: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition etc.
6.Packing:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
7.Our advantages and services:
Advantages:
(1)decades experience in this field.
(2)we occupied 80% led pick and place market.
(3)we can provide smt lin solution with you.
(4)quality assurance.
Services:
(1)Free Warranty: one year warranty factory services.
(2)Free installation:on-site free installation to ensure smooth production.
(3) We can configure the production line for you according to your product requirements.
(4) Free Software Upgrade.
(5) Free t Technical Training.
8.FAQ:
(1)What’s the terms of payment?
T/T is OK.30% Down payment in advance,70% payment before delivery
(2)Do you provide overseas after-sales services?
Yes.We can provide technical support abroad with you. We have offices overseas and have local engineers to help you solve the problems with the pick and place machine offline.
(3)What are the shipping methods, and how long?
Within 30 days.
(4)Is this machine difficult to operate?
No, not at all. 3 days is enough to learn to operate t
