Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Weight: | 2000KG |
|---|---|---|---|
| Mounting Speed: | 40000CPH | Dimension: | 1200*1930*1500mm |
| Feeders: | 32 | Pcb Thickness: | 0.1-6mm |
| Nozzles: | 10 | PCB Clamping: | Pneumatic |
Introduction to products:

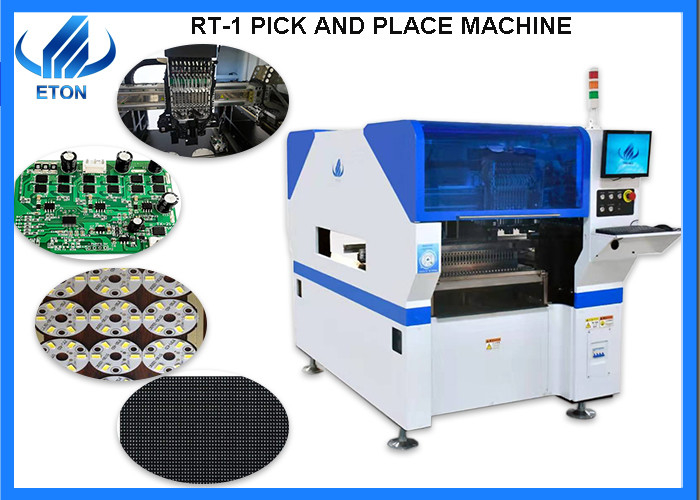

Single module magnetic linear motor multifunctional pick and place machine
The placement configure 10 nozzles.
The speed can reach 40000CPH
It can mount a wide range.
The height can be customized.

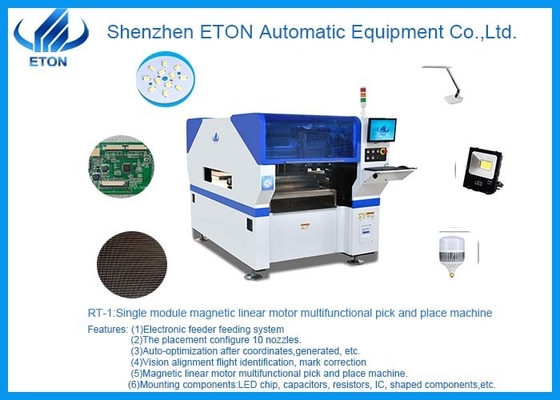

Features:
(1)Magnetic linear motor multifunctional pick and place machine.
(2)Mounting components:LED chip, capacitors, resistors, IC, shaped components,etc.
(3)Electronic feeder feeding system
(4)Vision alignment flight identification, mark correction
(5)Auto-optimization after coordinates,generated, etc.
(6)The placement configure 10 nozzles.
| RT-1 | ||
| PCB | PCB length width | Max:450*350mm Min:80*80mm |
| PCB thickness |
0.1~6mm (if <0.6mm need jig) |
|
| PCB clamping | Pneumatic | |
| Mounting mode |
1.Group to pick and separate to place 2.Separate to pick and separate to place |
|
| O.S. | System | Windows 7 |
| Software | R&D Independently | |
| Vision system | No. Of camera |
2 sets of imported camera (Vision alignment ,mark correction) |
|
Mounting speed |
40000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No.of feeders station | 32 PCS |
| No.of nozzles | 10 PCS | |
Product application:
Company introduction,certificate,exhibition
Package and delivery
All machines shipped abroad will use foam packaging to protect the machines from collisions;
* Secondly, it will be wrapped with stretch film to prevent the equipment from getting damp;
* Vacuum paper packaging and moisture-proof bags keep the machine dry during transportation to prevent moisture;
* Use straps, triangles and nails to fix the machine to prevent damage to the machine during transportation;
* Each export machine will be equipped with a strong export-free wooden box;
After-sales service
we will send our engineer to your factory to install machine and training freely.
We have service office in India,and have Indian engineer in Delhi and Mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
We can provide the SMT line solution:
1. We provide full SMT solution for you;
2. We provide core technology with our equipment;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.
Five-star services:
Professional solutions:provide professional SMT full line solutions.
Free warranty:One-year warranty factory service.
Free Installation: On-site free installation to ensure smooth production.
Free technical support:7*24 technical online support.
Free software upgrade:offer free software upgrade whole lifetime.
Sound company organization and working system, guarantee you a fast delivery!
Supply you all the SMT processing related machines and devices with best prices!
FAQ
1.Why do you choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil,etc.
2. What is the delivery date?
We will deliver the goods after 30 days’ deposit.
3.How about the operation of machine?
It is easy to operate of the machine. It takes about three to five days to get familiar with the operation.
4.Do you have oversea after sale service?
Yes, we do. We have India, Egypt and Turkey office and local engineer, etc. We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.
5.What machine can I buy from you?
We will also produce patch peripheral equipment, mainly the following several: Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
