Product Details:
Payment & Shipping Terms:
|
Warranty: | 12 Months | Condition: | New |
---|---|---|---|
Weight: | 2000KG | Mounting Speed: | 40000CPH |
Dimension: | 1200*1930*1500mm | Feeders: | 32 |
Pcb Thickness: | 0.1-6mm | Mounting Precision: | ±0.04mm |

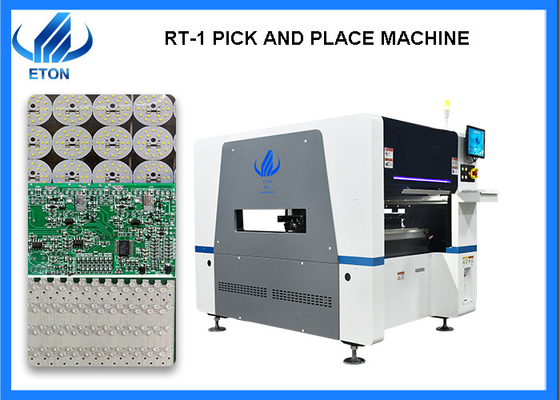

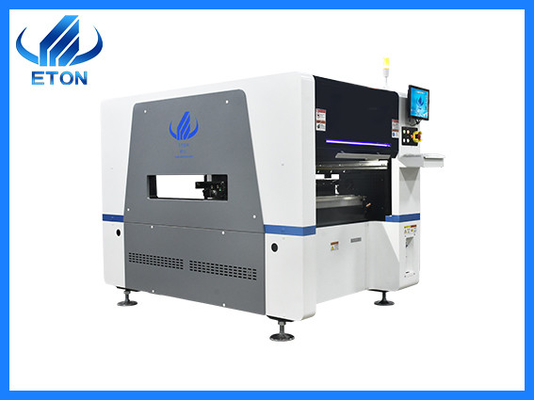

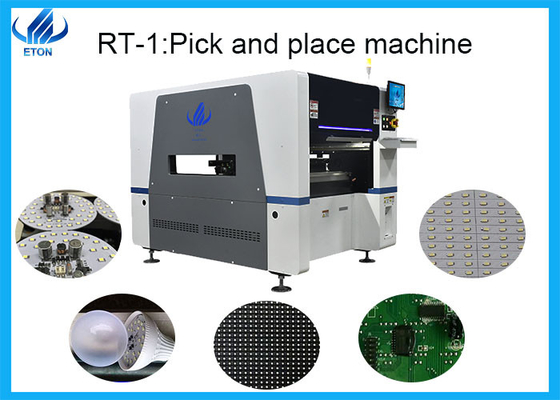

40000CPH multi-functional full-automatic 10 heads LED bulb smt pick and place machine
1. Introduction to products:
Single module magnetic linear motor multifunctional pick and place machine
The placement configure 10 nozzles.
The speed can reach 40000CPH
It can mount a wide range.
The height can be customized.
2. Features:
(1)Magnetic linear motor multifunctional pick and place machine.
(2)Mounting components:LED chip, capacitors, resistors, IC, shaped components,etc.
(3)Electronic feeder feeding system
(4)Vision alignment flight identification, mark correction
(5)Auto-optimization after coordinates,generated, etc.
(6)The placement configure 10 nozzles.
3. Machine parameter:
RT-1 | ||
PCB | PCB length width | Max:450*350mm Min:80*80mm |
PCB thickness |
0.1~6mm (if <0.6mm need jig) |
|
PCB clamping | Pneumatic | |
Mounting mode |
1.Group to pick and separate to place 2.Separate to pick and separate to place |
|
O.S. | System | Windows 7 |
Software | R&D Independently | |
Vision system | No. Of camera |
2 sets of imported camera (Vision alignment ,mark correction) |
Mounting speed |
40000CPH | |
Feeding system | No.of feeders station | 32 PCS |
No.of nozzles | 10 PCS |

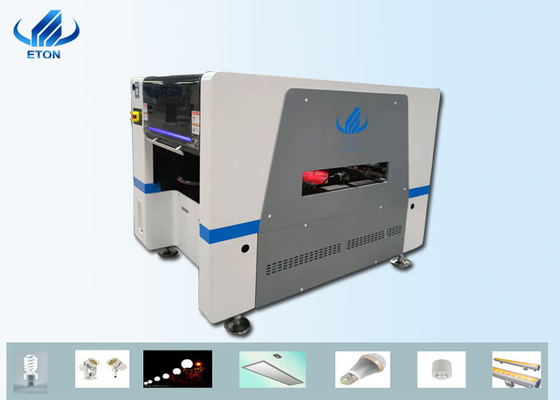

4. Product application:
5. Company introduction,certificate,exhibition
6. Package and delivery
7.After-sales service
We can provide the SMT line solution:
1. We provide full SMT solution for you;
2. We provide core technology with our equipment;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.
Five-star services:
Professional solutions:provide professional SMT full line solutions.
Free warranty:One-year warranty factory service.
Free Installation: On-site free installation to ensure smooth production.
Free technical support:7*24 technical online support.
Free software upgrade:offer free software upgrade whole lifetime.
Sound company organization and working system, guarantee you a fast delivery!
Supply you all the SMT processing related machines and devices with best prices!
8.FAQ
1.Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
2. How is the transportation?
By sea, by air and land transportation.
3. Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
4. What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
5.Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
