Product Details:
Payment & Shipping Terms:
|
| Dimention: | 2550*1650*1550 | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max：1200*500mm Min：100*100mm | PCB Thickness: | 0.5-5mm |
| System: | Windows 7 | Software: | R&D Indepentently |
| No.of Camera: | 2 Sets Of Imported Camera | Mounting Speed: | 45000CPH |
| Components: | LED Chip, Capacitors, Resistor, IC, Shaped Components.etc. | Electrical Control: | Indepentent Research And Development By Eton. |
SMT placement machine Feeder working principle:
SMT placement machine Feeder, The function is to provide the chip components SMC/SMD
to the patch head according to a certain rule and order for convenient and accurate picking.
It occupies a relatively large number and position in the placement machine, and it is also a
key component of selecting a placement machine and arranging the placement process.
Lens, such as the lens in led panels, lamp, downllight, our machine can mounting it on PCB.
Led chip, 3014,5050,3020,3527... in the led light, such as led bulb, panels, led strip light.
Resistor, capacitors, inductor, relay... in electric board or led lighting.
We are leading manufacturer of smt machine in China, More than 10 years LED lighting filed experience,
Has own R&D team mae the softwear and machines,Provide the whole life free whol life free update on softwear.
Own design and produce feeders make the machines' stablity and long life feeding and good softwear.

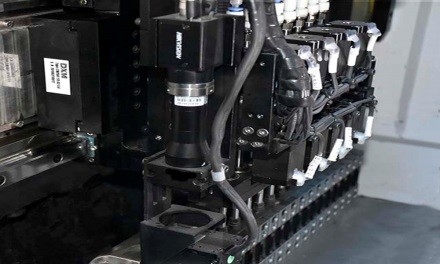

12 pcs placemet head, wide use for many kinds of product
Vision camera and Mounting speed ensure high quality and high capacity.
Motor use magnetic linear ensure the machine has high speed and use long time.
System have auotomatic replenishment and camera system, softwear by ETON make
Technical Data

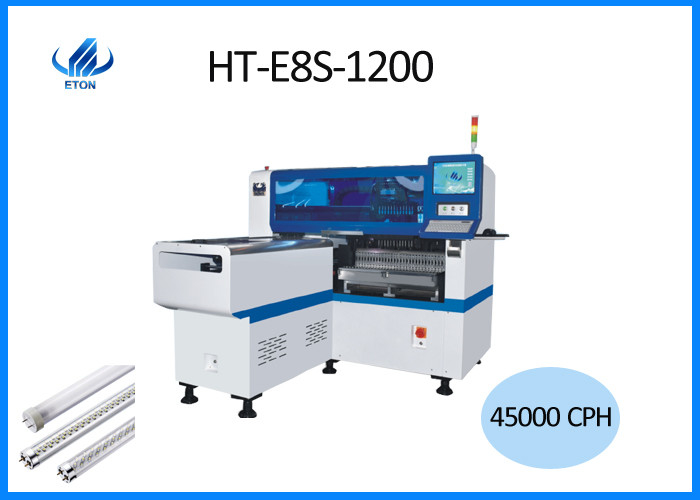

| Type | HT-E8S-1200 |
| Drive way | High-end magnetic linear moto + Servo motor |
| Air supply | 0.4-0.6mpa(4-6kgf/cm²)150N/min |
| Components | LED chip, capacitors, resistor, IC, shaped components.etc. |
| Mounting speed | 4.5W CPH |
| Dimention | 2550*1650*1550 mm |
| Max PCB size | 1200*500mm |
| Feeding way | Electric feeder with double motor |
| Total weight | 1700kg |
Our Main part use by high quality and top brand, so ETON machine have high quality and long life.
Save the cost and improve the product capacity and quality.
|
Q: Can I use CIF price?
|
A:
CIF price need add the freight, insurance fee on the basis of EXW price, and the india delivery forwarder will charge ours more than yours. so actually to do EXW will more simple and save cost for you. |
|

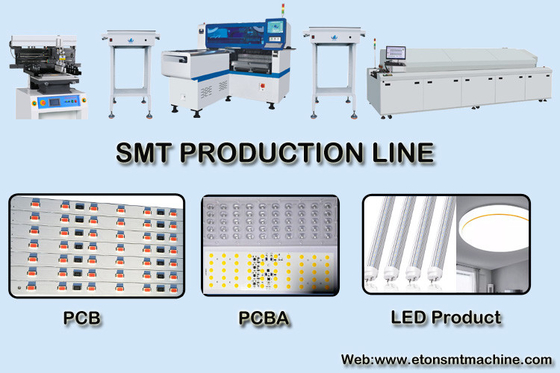

Q: What is the difference of automatic line and semi automatic line ?
|
A: The big difference of auto line and semi-auto line is the price and the labor. Automatic line required higher cost but save much cost of labor. Usually one operator is enough. But semi automatic line need at least 2 workers. |
|
Q: Do you have machine for all kinds of led lighting?
|
A: Dear Friend, we have multifunctional module HT-E8S-1200 suitable for mounting many kind of led lighting, such as led bulb, panel, DOB, strip light, tube, display, down-light, street light, etc. One module meet all your need.
|
|
Q: How many hours does the machine can operate per day?
|
A: Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
|
|
Q: I want to discuss with you about the assembly machines
|
A: I would advise you not to buy assembly lines yet because assembly lines are very expensive, it can be assembled manually first.
|
