Directly supplier multifunctional full-automatic LED bulb 10 heads RT-1 SMT pick and place machine

Directly supplier multifunctional full-automatic LED bulb 10 heads RT-1 SMT pick and place machine
Directly supplier multifunctional full-automatic LED bulb 10 heads RT-1 SMT pick and place machine

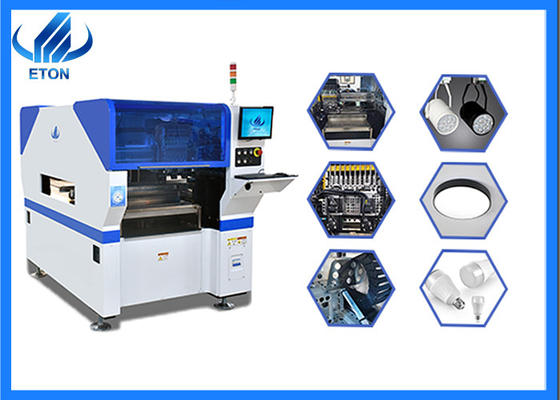

Large Image :  Directly supplier multifunctional full-automatic LED bulb 10 heads RT-1 SMT pick and place machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE, CCC, ISO
Model Number: RT-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 23000-35000
Packaging Details: vacuum package and wooden package
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50 set per month
Contact Now
Detailed Product Description
Name: SMT Pick And Place Machine Software: R&D By ETON
Language: English Or Chinese Camera: 2 Sets( Vision Alignment And Mark Correction)
Size: 1200*1930*1500mm Weight: 2000kg
PCB Clamping: Pneumatic Power: 380V AC
Operating Environment: 23℃±3℃ Warranty: 1 Year

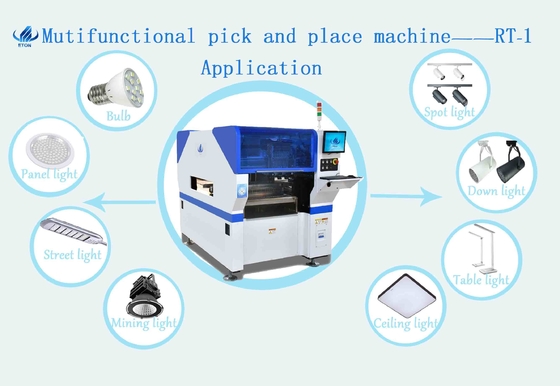

Directly supplier multifunctional full-automatic LED bulb 10 heads RT-1 SMT pick and place machine



The Feature of RT-1 Multifunctional mounter



  •  Single module magnetic linear motor multifunctional pick and place machine
  •  PCB clamping: Pneumatic
  •  Software: R&D independently by ETON
  •  Camera: 2sets ( vision alignment and Mark correction)
  •  Optimum capacity reach 40000CPH



Exclusive patented technology



  •  Electronic feeder feeding system
  •  Vision alignment fight identification, Mark correction
  •  Auto-optimization after coordinates generated
  •  Mounting mode: Group picking and separately placing, separately picking and separately placing



Technical parameter



Dimension
  •  Length
 1200mm
  •  Width
 1930mm
  •  Height
 1500mm
  •  Total weight
 2000kg
PCB
  •  PCB Length width
 Max: 450*350mm Min: 80*80mm
  •  PCB Thickness
 0.1-6mm ( If <0.6mm need jig)
O.S.
  •  System
 Windows 7
  •  Display
 Touch screen monitor
  •  Input device
 Keyboard, mouse
Vision system
  •  Transmission speed
 1000mm/sec
  •  Mounting precision
 ±0.04mm
  •  Transmission direction
 Single( left→right or right →left )
  •  No. Of feeders station
 32PCS
  •  No. Of head
 10PCS
  •  Operating environment
 23℃±3℃
  •  Power consumption
 4KW
  •  X, Y, Z Axis drive way
 High-end magnetic linear motor and serve motor
  •  Feeding way
 Electric feeder with double motor



Directly supplier multifunctional full-automatic LED bulb 10 heads RT-1 SMT pick and place machine 0

Company introduction



Directly supplier multifunctional full-automatic LED bulb 10 heads RT-1 SMT pick and place machine 1

ETON was founded in 2011. Jiangxi intelligent manufacturing Park was completed in 202. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation.

  •  More than 11 years experience
  •  Exported to more than 20 countries and regions
  •  Obtain a number of intellectual property technologies
  •  China high-tech enterprise
  •  The 4th China LED First Innovation Award





FAQ:



1.  What the language of the machine?

Our equipment has both Chinese and English versions.



2.  Why you choose ETON?

ETON has more than 11 years experience. ETON is in the leading position in the field of pick and place machine and commit to continuously providing the market with products and services that are “ more intelligent, more professional, more efficient, and lower consumption”.



3.  what about the after sales?

We provide 1 year after sales service.



4.  Is there any other equipment besides the mounter machine?

We have a complete SMT line of machine, such as solder paste printer machine, conveyor, reflow oven. We also offer customization.



5. Is The operating software reliable?

Yes, of course. Our software is R&D independently by ourselves.
