Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Pick And Place Machine | Size: | 1200*1930*1500mm |
|---|---|---|---|
| Weight: | 2000kg | PCB Length Width: | Max: 450*350mm Min: 80*80mm |
| PCB Thickness: | 0.1-6mm(if<0.6mm Need Jig） | Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing |
| PCB Clamping: | Pneumatic | Mounting Speed: | 40000 CPH |
| Power Consumption: | 4KW | Operating Environment: | 23℃±3℃ |

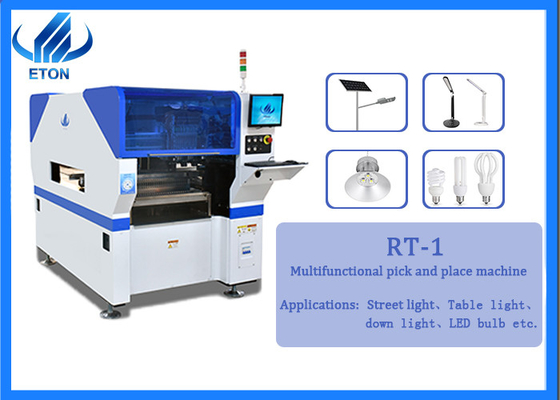

Personal customization multifunctional high precision 40000 CPH SMT LED making machine
The Feature of RT-1
X,Y,Z axis drive way: magnetic linear motor and servo motor
2sets of camera ( vision alignment and Mark correction)
The Optimum capacity can reach 40000CPH
PCB clamping: Pneumatic
Software is R&D independently by ETON
Exclusive patented technology
Electronic feeder feeding system
Vision alignment fight identification, Mark correction
Auto-optimization after coordinates generated
Group picking and separately placing, separately picking and separately placing
Technical parameter
| Dimension | |
|
1200mm |
|
1930mm |
|
1500mm |
|
2000kg |
| PCB | |
|
Max: 450*350mm Min: 80*80mm |
|
0.1-6mm ( If <0.6mm need jig) |
| O.S. | |
|
Windows 7 |
|
Touch screen monitor |
|
Keyboard, mouse |
| Vision system | |
|
1000mm/sec |
|
±0.04mm |
|
Single( left→right or right →left ) |
|
32PCS |
|
10PCS |
|
23℃±3℃ |
|
4KW |
|
High-end magnetic linear motor and serve motor |
|
Electric feeder with double motor |
Company introduction
ETON was founded in 2011 and has More than 11 years experience. Jiangxi intelligent manufacturing Park was completed in 2020. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation. ETON’s productions have exported to more than 20 countries and regions. Including South Africa, India, Egypt, Turkey, Russia, Brazil etc.
The Patents and property rights of inventions
ETON has obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights.
1. Shenzhen high-tech enterprise
2. China high-tech enterprise
3. Guangdong High-tech enterprise
4. Shenzhen TOP brand
5. 2015 LED Technology Innovation Award
6. The 4th China LED First Innovation Award
7. Industry Special Contribution
Service
We have 1 YEAR Maintenance period.
We will visit customers regularly and gather information
We will provide latest information about technology and equipment
We have overseas engineers teach equipment operation
FAQ:

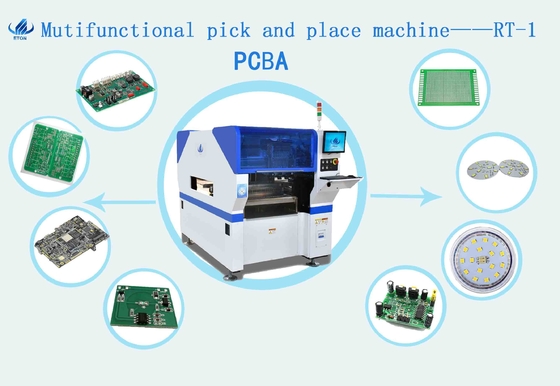

1. What are the main appliance about the pick and place machine?
We have many different machine, and different machines apply to different appliance. The main products include bulb, tube, flexible strip, panel light, down light,street light,ceiling light, wall washer light etc.
2. What about the mode of transport?
Both sea, air and road are OK.

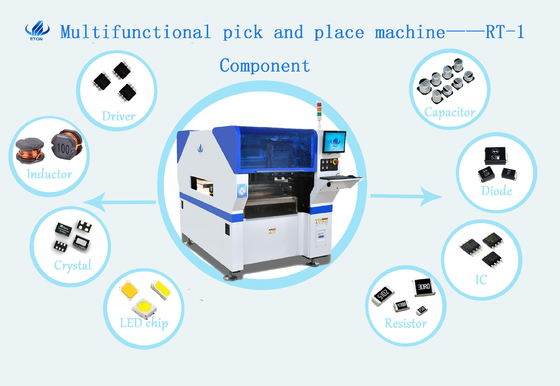

3. What components can be mounted?
LED chip, resistors, capacitors, IC, crystal, shaped component etc.
4. Do you provide the complete production line machine?
We have a complete SMT line of machine, such as solder paste printer machine, conveyor, reflow oven. We also offer customization.
5. How about the operating software ?
Our software is R&D independently by ourselves.
