Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 1200mm | Width: | 1930mm |
| Height: | 1500mm | Total Weight: | 2000kg |
| Mounting Speed: | 40000 CPH | Nozzles: | 10 PCS |
| Feeders: | 32 PCS | Mounting Precision: | ±0.04mm |
Vision alignment high precision 32 feeder SMT pick and place machine
Specific introduce
|
1.single module magnetic linear motor multifunctional SMT pick and place machine, which can mount different PCB boards and products.
|
|
2.It has two cameras, one for visual alignment and one for mark correction, which makes sure the mounting precision.
|
|
3.The maximum PCB size that can be operated is 450 * 350mm (non- omnidirectional 610 * 350), and the minimum is 80 * 80mm.
|
Our multi-functional SMT machine RT-1 has 10 nozzles, 32 feeders, precise control of high-end magnetic linear motor and electronic feeder with double motor to make the feeding system faster, so the production optimum capacity of this model SMT machine has reached 40000 CPH.
Parameter
| PCB clamping | pneumatic |
| Mounting heads | 10 PCS |
| Mounting feeders | 32 PCS |
| Mounting precision | ±0.04mm |
| Transmission direction | Single(left-right, right-left) |
| Positioning way | Online drive |
| Feeding way | Electrical feeder with double motor |
| Mounting mode |
Group to take and separate to mount Separate to take and separate to mount |

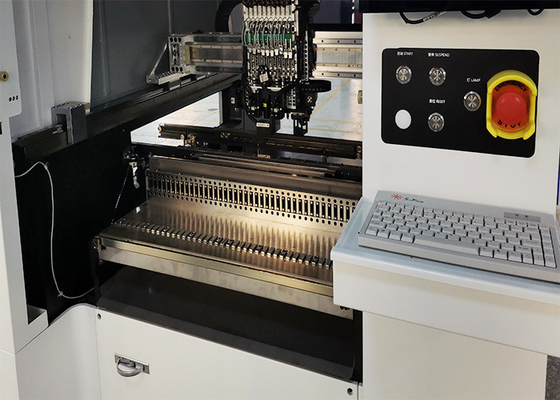

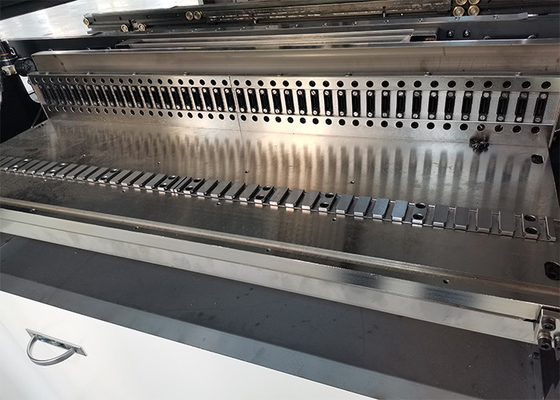

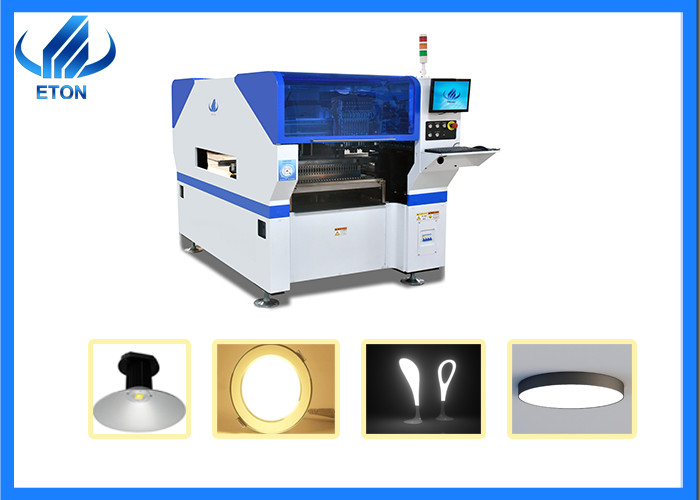

Product picture
Equipment required for production process
If you have any questions about the production line, we can do our best to solve it. Also we could design a full production line for you from your point of view.
A complete production line, the following core equipment is essential:
At the same time, the production line design is divided into full-automatic production line and semi-automatic production line. If your budget is sufficient, choosing full-automatic production line can bring you more valuable benefits.
Of course, if you need a more affordable production line, the semi-automatic production line can also meet your requirements, but it will cost more labor than the full-automatic production line.
Our service&attitude
1. We will provide one year warranty factory service for you, If parts need to be replaced during the warranty period, they can be replaced free of charge, but please believe that the quality of our machine is very good, it will bring you bg help.
2. offer free software upgrade whole lifetime. Software is R&D independently by ETON, so we can support it.
3. We will also provide free training for your employees until they know how to use the machine.
