Product Details:
Payment & Shipping Terms:
|
| Brand Name: | ETON | Length: | 1200mm |
|---|---|---|---|
| Width: | 2000kg | Height: | 1500mm |
| System: | Windows7 | Software: | R&D Independently |

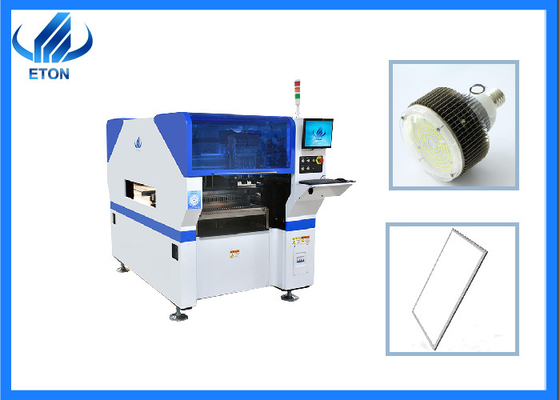

32 PCS Feeders Station capacity can reach 40000CPH Pick And Place Machine LED mounting Machine
1. FEATURES
RT-1 is a multi-function machine, which is used for mounting bulb, panel lamp, driving board, display screen, downlight, etc.
1.Magnetic linear motor multifunctional pick and place machine
2.Mounting components:LED chip,capacitors,resistors,IC,shaped components,etc.
3.Exclusive patented technology-We have 9 invention patents,112 practical patents,12 software copyright
-Vision alignment flight identification,mark correction
-Auto-optimization after coordinates generated,etc
2 .Technical Parameter :
| Model | Rt-1 |
| Dimension | 1200mm(L)/1930mm(W)/1500mm(H) |
| PCB length width |
MAX:450mm*350mm/MIN:80mm*80mm Non-omnidirectional:610mm*350mm |
| PCB thickness | 0.1-6mm |
| Mounting Precision | +-0.04mm |
| Components |
LED chip,LED chip,capacitors,resistors,IC,shaped components,etc.
|
| Power Comsumption | 4KW |
| Air supply | 0.4-0.6mpa150N/min |
| System | Windows 7 |
| Mounting Speed | 40000CPH |
| No. Of feeders station | 32PCS |
| No .of head | 10PCS |
RT-1
SMT Technological Process
1,Printer
2,Pick and place Machine/Mounting machine
3,Reflow oven
4,Conveyor
Step 1: scrape the solder paste with a scraper and leave it on the PCB pad through the steel mesh
Step 2: paste the lamp beads or other electronic components at the designated position of PCB
Step 3: melt the solder paste to make the electronic components better pasted on the PCB
Step 4: print and paste; Transmission; buffer
Company show
3. Company information
ETON machine is well-known in the market . In order to assure the quality of goods , we adopt strict processes in material purchasing and products producing .
ETON with more than 10 years experience in SMT machines field. Having more than 80% LED manufacturer are our partners in china.
FAQ
Q 1: What's the way of shipping ?
A : These are all heavy machines ; we suggest you use cargo ship . But spare parts for the machines , air transportation would be fine .
Q 2: What kind of service do you have?
A : we provide free install and training,during warranty,any parts need to be repaired and replaced will be free.
Q3:It’s hard to use the machine?
A:No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
