Product Details:
Payment & Shipping Terms:
|
| Dimension(L*W*H): | 2700*2300*1550mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max:1200*330mm; Min:100*100mm | Head: | 68 Pcs |
| Mounting Speed: | 200000~250000 CPH | Warranty: | 1 Year |

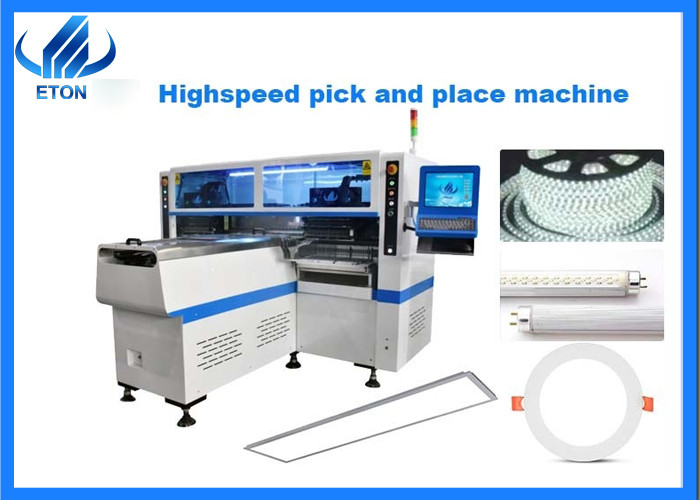

Dual arm flexible strip light 68 head highspeed pick and place machine
Machine main features:
1.Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with producing with 4 types materials at the same time with high capacity, available for board with any proportion of led chip and resistor.
2.Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
3.Exclusive patent technology: Group to take and group to mount.
4. 5 cameras, 2 feeder debugging cameras, 2 nozzle debugging cameras, one Mark camera, high placement accuracy.
5.The mounting speed reached 200000~25000CPH.
Machine main parameter:
| Model | HT-F9 |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to take and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 200000~250000 CPH |
| NO.of camera | 5PCS(Digital camera) |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |
Application:
It is suitable for mounting 0.5m,1m, 1.2m hard light board or flexible strip. It can produce
Linear products such as lamp tube, panel light, display screen and so on.
Exhibition:
Company profile:
ETON Company: a leading manufacturer of automatic high speed pink and place machine. The largest high teach Led light making machine manufacturer in China. Obtained a number of intellectual property technologies including 9 Invention patents,112 Practical patents and 12 software copyrights.
ETON Industrial park: There is 5,0000 square meters modern intelligent industrial parks. Having more than 300 employees .Equipped with an advanced processing and manufacturing centers.There are various machine,the fastest capacity reached 250000CPH,which has broken world record.
Service:
1.Warranty: 1 year. During the warranty period, any parts that need to be repaired and replaced are free.
2.Free Technical Support: 7* 24 technical online support.
3. We can provide professional SMT line solutions with you.
4.We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
5.Chinese engineers provide online services.If necessary, Chinese engineers will come to your factory for free install and training
6. The products are shipped quickly and the machine is packed in vacuum wooden boxes.
FAQ:
1.What is your machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality
2. Can you provide online technical support?
Yes, of course. We can offer you online training, online guidance.
3.Does your company have other machine or products besides selling pick and place machine?
Yes, of course. For instance, Automatic stencil printer, Reflow oven, LED light production line equipment.
