| Name: | Pick And Place Machine | PCB Length Width: | Max: 1200*330mm Min:100*100mm |
|---|---|---|---|
| Power: | 380AC 50HZ | Operating Environment: | 23℃±3℃ |
| Mounting Precision: | ±0.02mm(repeat Precision) | Camera: | 5 Set Of Digital Camera |
| No. Of Feeders Station: | 68 PCS | No. Of Head: | 68 PCS |
| Transmission Direction: | Single | Positioning Way: | Optical |

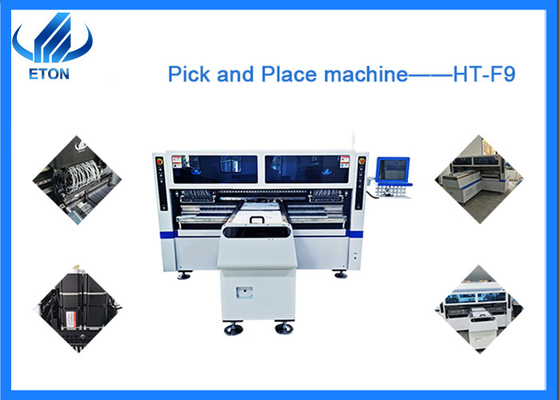

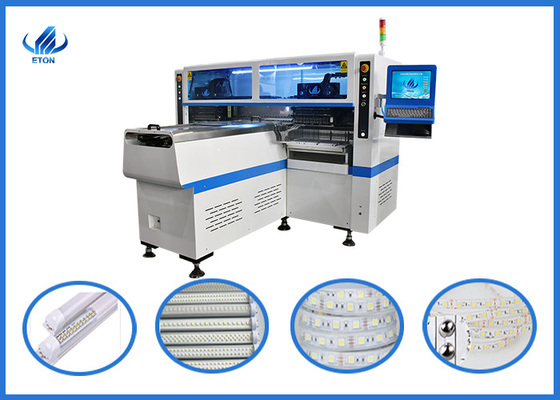

Professional full automatic making flexible strip 250000CPH HT-F9 LED mounter
Technical parameter
| Dimension | |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |
| PCB | |
| PCB Length width | Max: 1200*330mm Min: 100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| O.S. | |
| System | Windows 7 |
| Display | Touch screen monitor |
| Input device | Keyboard, mouse |
| Software | R&D independently |
| Vision system | |
| Transmission speed | ≤1000mm/sec |
| Conveyor transmission | Max length: 1200mm |
| Repeating Mounting precision | ±0.02mm |
| Component space | 0.5mm |
| Component height | ≤5mm |
| Transmission direction | Single (left→ right or right→ left) |
| No. Of feeders station | 68PCS |
| No. Of head | 68PCS |
| Operating environment | 23℃±3℃ |
| Power consumption | 6KW |
| Transmission mode | Online drive |
| Positioning way | Optical |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
| Feeding way | Electric feeder with double motor |
Mounting components and Applications
1. LED 3014/3020/3528/5050 and resistor, capacitor, bridge rectifiers are mounted.
2. Apply to the 0.6M, 0.9M rigid PCB and 0.5M,1M LED flexible strip
3. Available for board with any proportion of LED chip and resistor
The Features
1. Magnetic linear LED high-speed pick and place machine, Producing with 4 types materials at the same time, capacity reach 250000 CPH.
2. Apply to the 0.6M, 0.9M rigid PCB and 0.5M,1M LED flexible strip. Available for board with any proportion of LED chip and resistor.
3. Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
4. Calibration automatically, high precision, available for RGB.
5. Exclusive patent technology: group to pick and group to mount.
6. IPC 9850 capacity reach 200000-250000CPH.
The part of machine
1. 5 cameras: 2 nozzles adjustable camera to adjust the nozzle spacing by taking on the center of the nozzle；2 feeder adjustable camera to adjust feeder by taking feeder station center line;1 MARK camera to Mount the PCB board by scanning MARK points.;
2. 68 PCS of feeders station and 68 PCS of head capacity reach 2500000CPH.
3. High-end magnetic linear motor, servo motor and stepping motor
Service
1. 1 YEAR Maintenance period
2. 24 hours 7 days online Answer questions
3. Personal customization to satisfy personalized production.
4. Overseas engineers to teach equipment operation.
FAQ:
1. What if you don’t know how to use the device?
Don’t worry about it. No matter where you are, we will provide professional engineers to teach the operation of equipment, including one to one.
2. What is the mode of payment?
T/T is supported.
3. Who are your main clients?
Our production have exported to more than 20 countries and regions, including South Korea, India, Egypt, Turkey, Russia etc.
4. Do you support the English version?
YES. We have two language versions, including Chinese and English versions.
5. How about the operating software ?
Our software is R&D independently by ourselves.
