Product Details:
Payment & Shipping Terms:
|
Dimension: | 2700*2330*1500mm | Weight: | 1700kg |
---|---|---|---|
PCB Length Width: | Max:1200*330mm; Min:100*100mm | Head: | 34 Pcs |
Mounting Speed: | 150000~180000 CPH | Mounting Height: | ≤5mm |

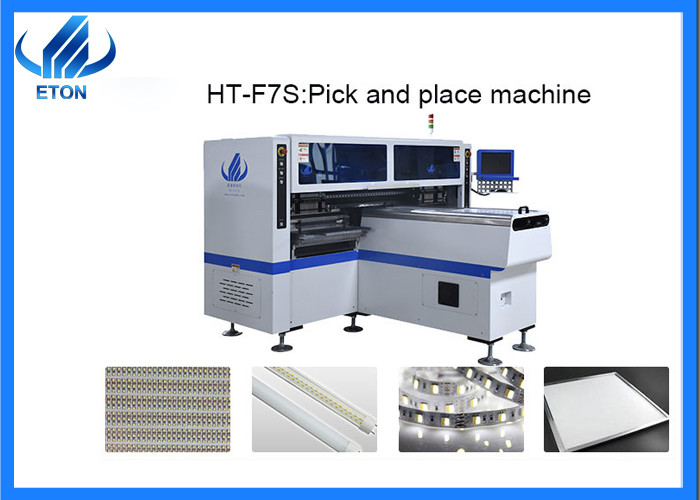

Dual arm flexible strip light 34 head highspeed pick and place machine
Features:
(1) Dual-arm professional high-speed pick and place machine.
(2) Producing with 2~4 types of materials with high capacity, available for 5m,50m or any length of flexible strip and roll to roll.
(3) This machine has a total of 34 nozzles, which mounting speed reached 180000 CPH.
(4) Apply to led tube, led flexible strip light, panel light and so on.
Model | HT-F7S |
Dimension(L*W*H) | 2700*2300*1550mm |
Weight | 1700kg |
PCB length width | Max:1200*330mm;Min:100*100mm |
PCB thickness | 0.5~5mm |
Mounting precision | ±0.02mm |
Mounting mode | Group to pick and group to mount |
Mounting height | ≤5mm |
Mounting speed | 150000~180000CPH |
Power consumption | 6KW |
No. Of feeders station | 68PCS |
No. Of head | 34 PCS |
Application:
This machine is mainly suitable for 0.5m,1m led flexible strip, led tube, panel light and so on.
Market:
We occupied a vast foreign LED market, 80% larger and listed led factory are our client .
Company profile:
(1) ETON Company: a leading manufacturer of automatic high speed pink and place machine. The largest high teach Led light making machine manufacturer in China. Obtained a number of intellectual property technologies including 9 Invention patents,112 Practical patents and 12 software copyrights.
(2) ETON has rich industry experience and high-tech talents, as well as a perfect after-sales service team.
(3)ETON Industrial park: There is 5,0000 square meters modern intelligent industrial parks. Having more than 300 employees .Equipped with an advanced processing and manufacturing centers.There are various machine,the fastest capacity reached 250000CPH,which has broken world record.
Our advantages:
1.The Camera adopts Germany imported spare part, automatic visual auxiliary positioning, positioning is accurate, convenient.
2.Our feeder is electric feeder, can satisfy the requirement of different SMT LED components.
3. Machine’s software is easy to operate, can update anytime by free.
4.Decades experiences in the pick and place machine field.
5. 80% larger and listed led factory are our client and occupied a vast foreign LED market.
6.We have our own machine industrial park, which is used to produce and manufacture machine.
Services:
1.Free technical support: 7*24 hours online technical service.
2.Free installation and training: we have established offices overseas. We can arrange engineers to go directly to the factory for free installation and training.
3.Free upgrade software: machine software is developed by our company, so we provide life-long free upgrade software for customer for customer who purchase the machine.
4. We can provide SMT production line solution with you.
Packing&Delivery:
Firstly, our machines shipped abroad will use foam packaging to protect the machines from collisions;
Secondly, it will be wrapped with stretch film to prevent the equipment from getting damp;
Third, vacuum paper packaging and moisture-proof bags keep the machine dry during transportation to prevent moisture;
Fourth, use straps, triangles and nails to fix the machine to prevent damage to the machine during transportation;
Finally, each export machine will be equipped with a strong export-free wooden box;
FAQ:
1.Do you have overseas after-sales services?
Yes.We can provide technical support abroad with you. We have offices overseas and have local engineers to help you solve the problems with the pick and place machine offline.
2.How about the warranty?
We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
3.Is it hard to use these machines?
No,not at all. 3 days is enough to learn to operate the machines.
4.What can you buy from us?
Pick and place machine, Automatic stencil printer,SMT machine,Reflow oven,LED light production line.
