Product Details:
Payment & Shipping Terms:
|
| Name: | LED Mounting Machine | Length: | 2700mm |
|---|---|---|---|
| Width: | 2300mm | Height: | 1550mm |
| Total Weight: | 1700kg | Mounting Speed: | 200000~250000 CPH |
| System: | Windows 7 | Software: | R&D Indenpendently |

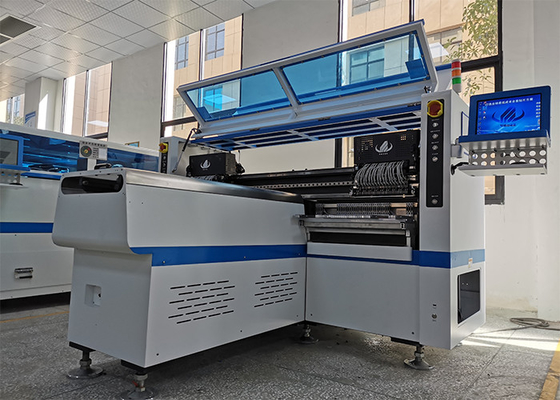

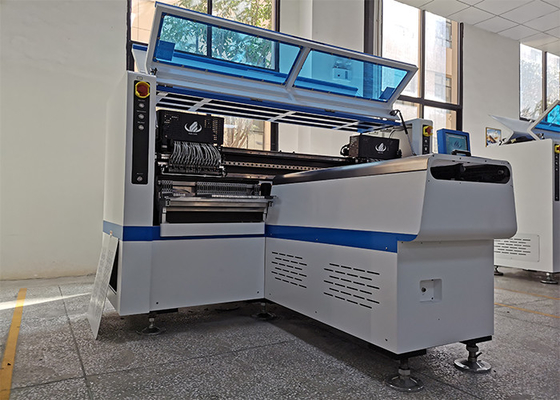

0603 200k CPH LED strip Mounting Machine with fast speed
Product description
1.Apply to the 0.6M, 0.9M,1.2M rigid PCB and 0.5M, 1M LED flexible strip. |
2.Produce 4 kinds of materials at the same time with high capacity. |
3.Available for any proportion of LED chip and resistor. |
| 4.Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously. |
| 5.Calibration automatically, high precision, available for RGB. |
| 6.Exclusive patent: group picking and group placing. |
Mounting components: LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers.
O.S:
1) The operating system adopts window 7.
2) The software used in the machine is independently developed by our company and has obtained an exclusive patent certificate. Based on this, if you buy our machine, we will provide you with permanent free software upgrade.
Parameter
| PCB size | Max:1200*330mm min:100*100mm | |
| PCB thickness | 0.5-5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and group placing | |
| Mounting speed | 20w-25wCPH(optimum) | |
| Components space | 0.5mm | |
| Mounting height | ≤5mm | |
| X,Y Axis drive way | high-end magnetic linear motor+servo motor | |
| Air supply | 0.4-0.6 mpa | |
Machine appliance

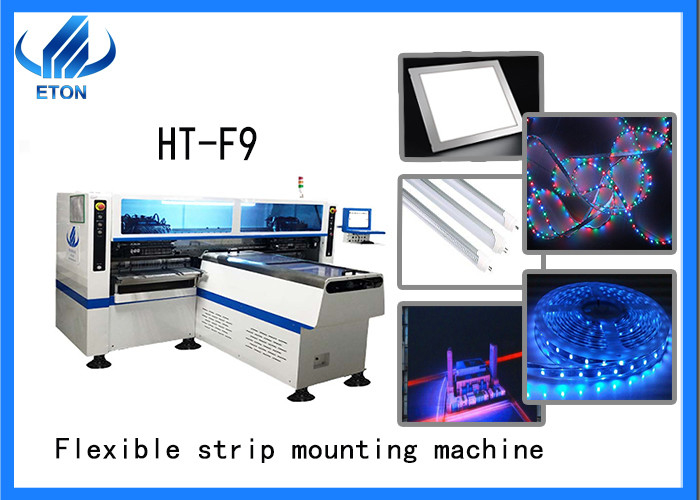

1.Rigid PCB: The length of PCB board that F9 can accommodate is 1200 * 330mm, you can make rigid boards, such as panel lamps and lamp tubes. |
2. Flexible PCB: Of course, in addition to the hard board, one of the biggest features of this machine is that it can also make soft board, such as flexible strip, this kind of lamp is used for outdoor decoration. |
Payment
We only support payment by L/C or T/T, if you choose to use T/T you need to pay 30% before produce, and the remaining 70% of the money should be paid before delivery, or choose to pay the full amount at one time.
Company show
ETON automatic equipment Co., Ltd was set up from 2011, is the leading manufacturer of global optoelectronic high speed Led lights PCB assembly mounting machine. The products are exported to more than 20 countries and regions.
FAQ
Q1: How is the training? |
Q2: what kind of certificates does your product have? |
Q3: :How many hours does the machine can operated per day? |
