Length: | 2700mm | Width: | 2300mm |
---|---|---|---|
Height: | 1550mm | Tatal Weight: | 1700kg |
System: | Windows7 | X,Y Axis Drive Way: | Electric Feeder With Double Motor |

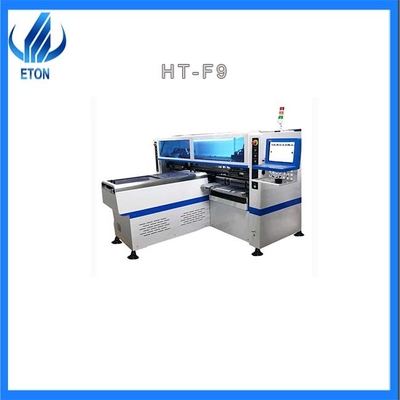

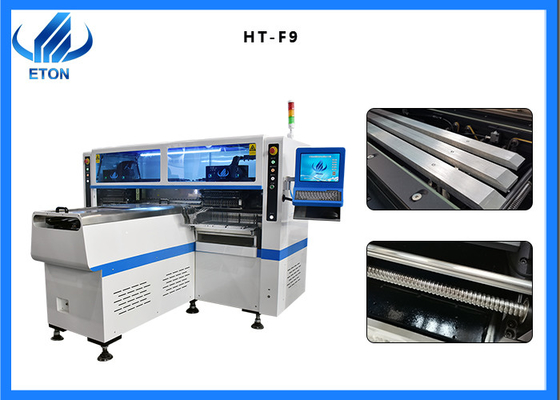

250000CPH LED high speed pick and place machine dual arm magnetic linear motor
Features
1. apply to 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.producing with 4 types materials at the same time with high capacity,avaible for board with any proportion of LED chip and resistor.
2. Dual arm four module,17 nozzles for each mounting part,part A/B/C/D Can be mounted separately or synchronsly.
3. Calibration automatically,high precision,available for RGB.
4. Exclusive patent technology:Group to take and group to mount.
Technical parameter
Dimension(L*W*H) | 2700*2300*1550mm |
Total weight | 1700KG |
PCB length width | MAX:1200*330mm MIN:100*100mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
System | Window7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input device | Keyboard,mouse |
No.of camera | 5PCS |
Repeat mounting precision | +-0.02mm |
Mounting speed | 200000CPH-250000CPH |
Mounting height | <=5mm |
components | LED3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers |
No.of feeders station | 68PCS |
No.of head | 68pcs |
Feeding way | Electric feeder with double motor |

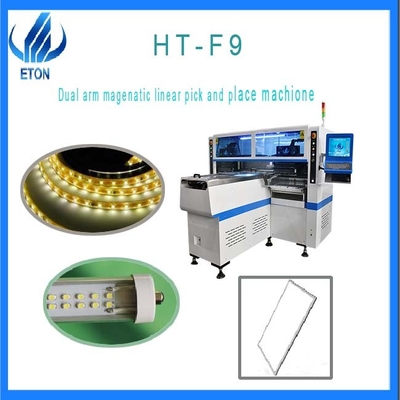

Application
Factory show
Company profile
Shenzhen ETON automation equipment Co., Ltd., founded in 2011, is a manufacturing and process solution provider focusing on the R &D, production, sales and service of SMT high-speed mounter and surrounding automation equipment. The company has SMT Mounter division, precision solder paste printing equipment division, high-speed precision dispensing equipment division and SMT peripheral automation equipment division.
Certificate of honor
Our pick and place machine is divided into multi-function machine and high-speed machine. We can not only provide you with pick and place machine, but also provide you with printing machine, loading machine, unloading machine, conveyor, translational machine, reflow oven, etc.
FAQ
A:Did you develop your own machine?
B:It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
A:What is your machine suitable for?
B:Our machines are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries
A:It’s hard to use the machine?
B:No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
