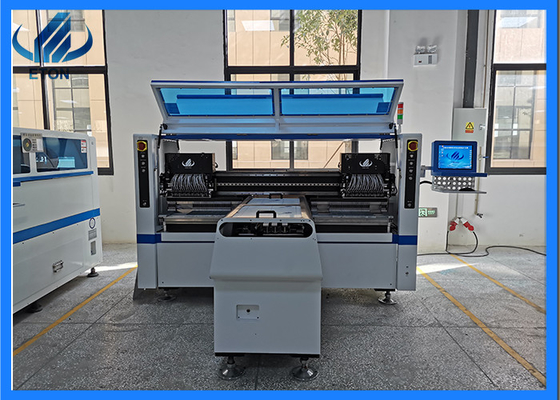

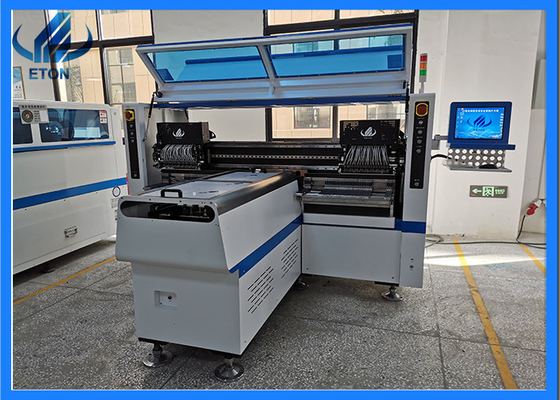

windows 7 6KW XY AXIS 68 feeders high precision LED mounting machine
Technical parameter
| length |
2700mm |
| width |
2300mm |
| height |
1550mm |
| Total weight |
1700kg |
| software |
Windows7 |
| display |
Touch screen monitor |
| Input device |
Keyboard,mouse |
| Mounting speed |
200000-250000CPH |
| components |
LED3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers |
| Components space |
0.5mm |
| Air supply |
0.4-0.6mpa |
| Electrical control |
Independent research and development by ETON |
| X,Y Axis driver way |
High-end magnetic linear motor+servo motor |
| Feeding way |
Electric feeder with double motor |

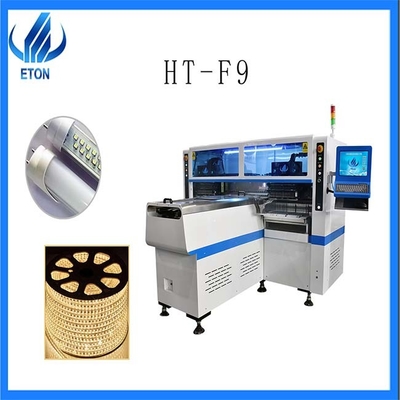

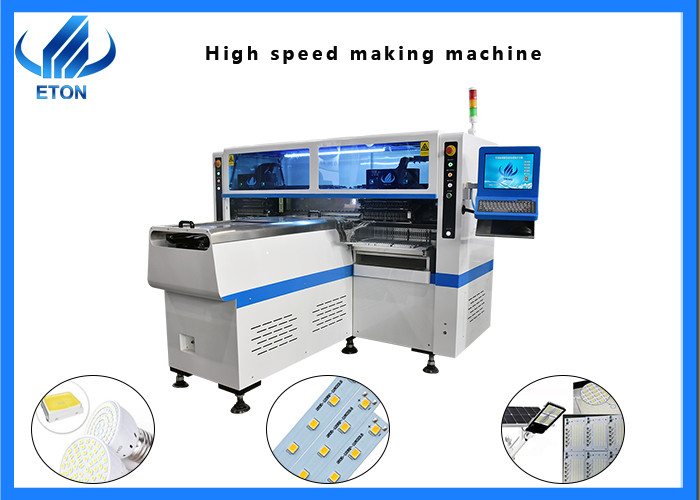

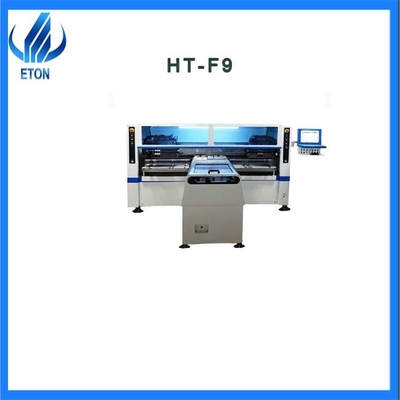

Product Introduction of HT-F9 Pick and Place Machine
.apply to 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.producing with 4 types materials at the same time with high capacity,avaible for board with any proportion of LED chip and resistor.
.Dual arm four module,17 nozzles for each mounting part,part A/B/C/D Can be mounted separately or synchronsly.
.Calibration automatically,high precision,available for RGB.
.Exclusive patent technology:Group to take and group to mount.
Company and exhibition
In 2007, set up the R&D center in Taipei, begin to research and development of LED highspeed SMT machine technology and patent In 2008, set up Hong kong Hon-Eton Group Co.,ltd.
We have participated in exhibitions in guangzhou ,shenzhen,shanghai,Turkey,India,Tran,Pakistan,Vietnam,Thailand and other countries and regions.
Other machine
our pick and place machine is divided into multi-function machine and high-speed machine.we cna not only provide you with pick and place machine,but also provide you with printing machine,loading machine,unloading machine,conveyor,translational machine,refloe oven,etc.
service
we provide free installment ,free warranty,free technical trainning,free technical support,free upgrade software.
FAQ
A:What’s the terms of payment? What about the trade term? T/T is B:OK. You can choose FOB Shenzhen.
A:choose which mode of transportation?
B:Our modes of transportation are flexible,including water,land and air transportation
A:Is this machine difficult to operate?
B:No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
A:Is your software interface in English?
B:English interface and Chinese interface are both available.
A:Do you have oversea after sale service?
B:We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
