Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Production Line | Power Supply: | 380AV 50HZ |
| Weight: | 1700kg | Mounting Speed: | 45000CPH |
| Usage: | SMT Mounting Machine | Dimension: | 2500*1650*1550mm |
| Pcb Thickness: | 0.5~5mm | NO.of Feeder Station: | 28PCS |
Single module multifunction magnetic linear motor high precision smt mounter machine
Product description

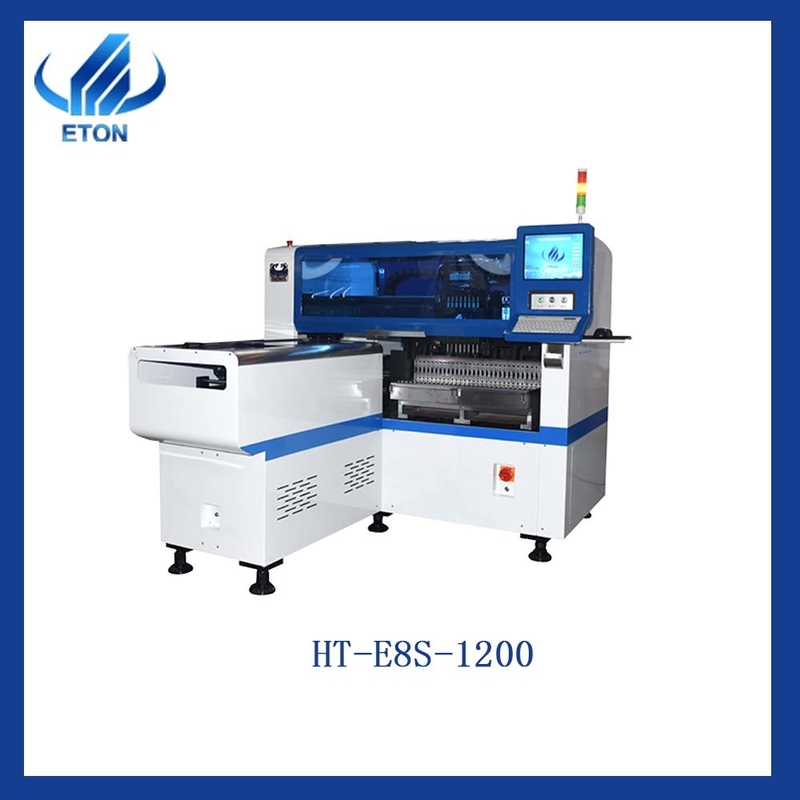

HT-E8S is single module magnetic linear motor multifunctional pck and place machine,. It has 2 PCS camera ,which is1 PCS MARK camera and 1 PCS flight recognition camera.MARK camera is make the PCB mounting program by scanning the mark point as the benchmark. Flight recognition camera is take photos of the components absorbed by the head, compare the previous mounting procedures with the mark camera, and calculate whether it is necessary to correct the components through compensation.
| Dimension | 2550*1650*1550mm |
| Weight | 1700kg |
| PCB length width | 1200*500mm 100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | pneumatic |
| Mounting mode | group picking and separately placing,separately picking and separately placing |
| NO.of camera | 2 PCS |
| Mounting precision | ±0.04mm |
| Mounting speed | CPH |
| NO.of feeders station | 64PCS |
Main feature w
Detail description
Mounting head
10 PCS nozzles can group picking and separately placing,seprately picking and separately placing,Because each head is controlled by an independent motor.The mounting head can high speed and accurate mounting lens, LED chip, capacitors, resistors, shaped components.
Guide rail
It is used to support and guide the moving part and make high-precision reciprocating motion in the specified direction.
Srew rod
The function of the screw rod is to convert the rotary motion of the servo motor into linear motion, so as to drive the mounting head to move back and forth on the linear guide rail to mount components.
Production line
Packing&delivery
Our campany use vacuum packaging and wooden cases to arrive at the port you require by truck airplane and ship.
Campany Profile
Shenzhen ETON Automation Equipment Co., Ltd., founded in 2011, is a provider focusing on the R & D, production and sales of SMT high-speed mounter and SMT peripheral automation equipment, as well as the manufacturing and process scheme of garment production.
FAQ
1.What can you company offer us?
A:Free warranty within one year .
2.Can you provide a complete production line machine for us ?
A:Yes,our company can provide for your.
3.Why we choose you company?
A:ETON has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
4.Can we visit the workshop?
A:If you want to visit the workshop and it's inconvenient for you to come, we can let you visit through video.
5.What is your delivery date?
A:The delivery date is about 20 date upon the full payment.
