Double arm high speed high yield 250000 CPH mounter Product Description

Double arm high speed high yield 250000 CPH mounter  Product Description
Double arm high speed high yield 250000 CPH mounter  Product Description

Large Image :  Double arm high speed high yield 250000 CPH mounter Product Description

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-T9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum packaging and wooden cases
Delivery Time: 5~8 work days
Payment Terms: L/C, T/T
Detailed Product Description
Warranty: 1 Year Name: SMT Pick And Place Machine
Application: SMT Production Line Power Supply: 380AV 50HZ
Product Name: Place Machine\ LED Mounter\LED Assembly Machine Weight: 1700kg
Mounting Speed: 200000~250000 CPH Usage: SMT Mounting Machine
Dimension: 3100*2300*1550mm Pcb Thickness: 0.5~1.5mm

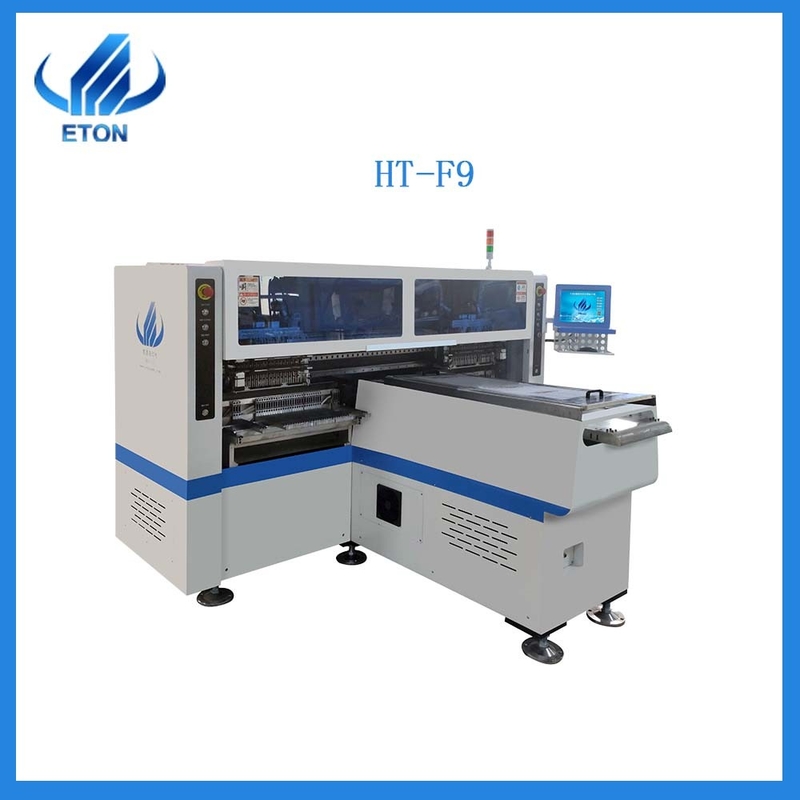

Double arm high speed high yield 250000 CPH mounter

Product Description

HT-T9 is dual arm that can produce 4 different materials with 250000 CPH.It can high speed produce any length of flexible strip.





Double arm high speed high yield 250000 CPH mounter  Product Description 0

Double arm high speed high yield 250000 CPH mounter  Product Description 1



Dimension 3100*2300*1550mm
Weight 1700kg
PCB length width 250mm*any length
PCB thickness 0.5~1.5mm
NO. of head 68PCS
Mounting mode group picking and group placing
NO.of camera 5 PCS
Mounting precision ±0.02mm
Mounting speed 200000~250000CPH
NO.of feeders station 68PCS







Main feature



  • Producing with 4 difference materials at the same time with high capacity.

  • Mount any length of flexible strip.

  • Dual arm four module,17 nozzles for each mounting part,the single material tray can be pasted separately, and the same tray is always installed on the same light bar.

  • With correction function, RGB can be attached.

  • Exclusive patent: group picking group placing.

  • PCB clamping:vacuum adsorption,cylinder splint and adjustable track.

  • Camera:5 sets digital camera that can vision alignment and Mark correction.



Product line

We can customize the production line suitable for your products, and we can provide you with all the machines above.

Double arm high speed high yield 250000 CPH mounter  Product Description 2



Company profile

l Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

l No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours,day to solve;Guangdong Province 24 hours.

l ETON mission: professional, excellent technology, sharing the results.

l ETON goal: A national well-known brand,build world-class enterprises.

l ETONS purpose:To create value for customers,creating benefits for society.

l ETON Vision : Determined to become the worlds most competitive manufacturer and service provide of pick and place machine and high-end electronic testing equipment.



Double arm high speed high yield 250000 CPH mounter  Product Description 3





Service

Double arm high speed high yield 250000 CPH mounter  Product Description 4

Exhibition

Double arm high speed high yield 250000 CPH mounter  Product Description 5

Our products are exported to more than 20 countries overseas, such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And we also participate in many

abroad and domestic.

  • Abroad: Thailand Exhibition, Turkey exhibition, India Mumbai exhibition, India Delhi exhibition, Pakistan exhibition, Egypt exhibition, etc.

  • Domestic :Guangzhou Guangya Exhibition, Shanghai Munich exhibition and Chongqing led exhibition.etc.







FAQ

1.Which service you can offer for me?

  • The warranty period of the whole machine is 1 year.]

  • Visit customers regularly and gather information .

  • Provide latest information about technology and equipment.

2.Can you provide all machines on the compete product line for me?

A:We can offer all machines for you.

3:What is your delivery date?

A:The delivery date is about 20 days upon the full payment.

4:Does the mounter price include nozzles and feeders?

A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.



4.What kind of nozzle is the machine?

A:Multi function machines are generally made of alloy and ceramics, and special machines are generally made of steel and copper
