Product Details:
Payment & Shipping Terms:
|
| Name: | LED Mounting Machine | Length: | 2700mm |
|---|---|---|---|
| Width: | 2300mm | Height: | 1550mm |
| Total Weight: | 1700kg | MAX PCB Size: | 1200*300mm |
| PCB Thickness: | 0.5-5mm | System: | Windows 7 |

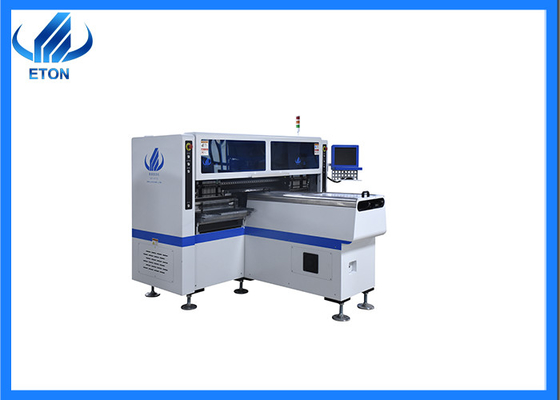

5 PCS digital camera capacity can reach 150k to 180k LED tube mounting machine
Product description
| 1. HT-F7S can be specially used to produce linear products of LED lamps, and the optimal production capacity can reach 180K CPH |
|
2. The mountable parts are led 3014 / 3020 / 3528 / 5050, resistor, capacitor, bridge rectifiers, etc |
|
3. The motion mode card adopts the independent research and development system of ETON, optical positioning and automatic transmission |
O.S
1. The system is windows7, which is simple to operate and easy to use.
2. The display screen is a touch screen, which is more sensitive to give or edit instructions.
Feature
1. Apply to the 0.6M to 1.2M hard PCB board, 0.5M to 1M soft led flexible strip, producing with 2-4 kinds of materials with high capacity.
2. Two mounting modules, 17 nozzles for each mounting part, A/B are independent for each other.
3. Can mount RGB.
4. Exclusive patent technology: group to pick and group to mount.
Appliance:
1. SMDS that can be mounted on this model include led3014 / 3020 / 3528 / 5050, resistance, capacitance, etc.

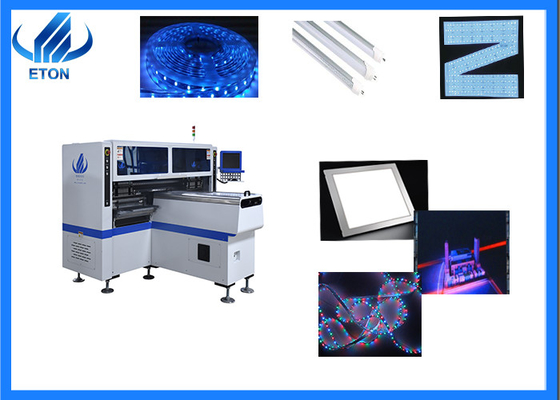

2. The products that can be produced by this model include lamp tube, lamp strip, soft lamp strip, panel lamp, display screen and so on.
Parameter
| software | R&D independently |
| Input device | keyboard & mouse |
| MIN PCB size | 100*100mm |
| Mounting mode | Group to pick and group to place |
| Mounting speed | 150000-180000 CPH |
| No.of heads | 34 PCS |
| No.of feeders station | 68 PCS |
| Feeding way | Electric feeder with two motor |
Company show
Our company focuses on the production of LED chip manufacturing machines, and has independently developed the world's first technological invention patents and property rights technology, including 9 invention patents, 12 software copyrights and 112 practical patents. It has won various certificates, such as well-known brands in Shenzhen and national advanced technology enterprises.
Exhibition
Our exhibitions mainly include India exhibition, Pakistan exhibition, Thailand Exhibition, Egypt exhibition, Turkey exhibition, etc. the following are the photos of the exhibitions we have participated in and the different LED lamp manufacturers we have cooperated with.
FAQ
Q1: How to pay after buying the product?
A:For payment, we only support L/C and T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
Q2: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
Q3:Have you obtained any certificates for your products?
A:Yes,Our machine has won many certificates, such as CCC, CE, SIRA, and our enterprise has won the national high-tech award because of its strong R & D strength.
