| Name: | Pick And Place Machine | PCB Clamping: | Pneumatic |
|---|---|---|---|
| No. Of Feeders Station: | 64 PCS | No. Of Head: | 20 PCS |
| Dimension: | 1200*1930*1500MM | Total Weight: | 2500 KG |
| Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing | Mounting Speed: | 80000 CPH |
| Power: | AC 380 V | Power Consumption: | 6KW |

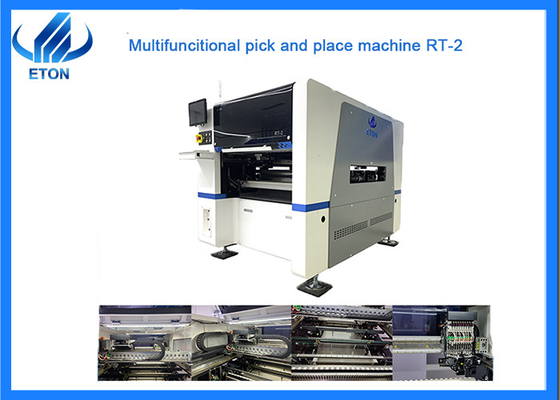

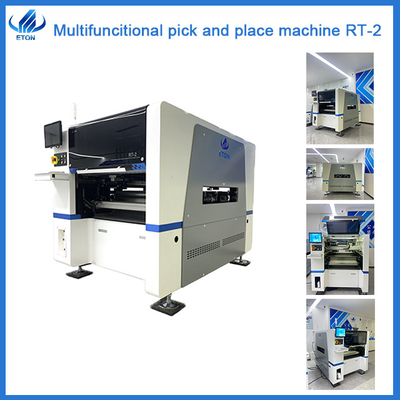

Dual system dual module 4 sets camera capacity 80000 CPH RT-2 pick and place machine
The Feature of RT-2
RT-2 is Dual system and dual module magnetic linear motor multifunctional pick and place machine.
The power consumption of RT-2 is 6KW.
RT-2 is able to produce two different products at the same time.
The machine of RT-2 has 4sets of camera: vision alignment and Mark correction.
The Optimum capacity will reach 80000CPH.
RT-2 is the Enhanced version of RT-1.
The Completed RT-2 SMT Production Line
Solder paste printer machine: Put the solder paste on the PCB board
Double-rail Conveyor: transmission the PCB board to pick and place machine
Pick and place machine RT-2: mounting the components on the PCB board
Reflow oven: heating the PCB board
Technical parameter
| Module | RT-2 |
| Length | 1200mm |
| Width | 1930mm |
| Height | 1500mm |
| Total weight | 2500kg |
| PCB Length width |
Double side, double track: Max: 450*300mm Min: 80*80mm |
|
Single side, single track: Max: 450*540mm Min: 80*80mm |
|
| PCB Thickness | 0.1-6mm ( If <0.6mm need jig) |
| System | Windows 7 |
| Display | Touch screen monitor |
| Input device | Keyboard, mouse |
| Transmission speed | 1000mm/sec |
| Mounting precision | ±0.04mm |
| Transmission direction | Single( left→right or right →left ) |
| No. Of feeders station | 64PCS |
| No. Of head | 20PCS |
| Operating environment | 23℃±3℃ |
| Power consumption | 6KW |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
| Feeding way | Electric feeder with double motor |
| Mounting components | capacitors, resistors, IC, crystal, shaped component etc |
| Applications | LED bulb, mining light, street light, panel light, table light, ceiling light etc. |
