Product Details:
Payment & Shipping Terms:
|
| Dimension (L*W*H): | 1200*1930*1500mm | Total Weight: | 2500kg |
|---|---|---|---|
| PCB Length Width: | Max:450*300mm Min:80*80mm | PCB Thickness: | 0.1-6mm(If<0.6mm Need Jig) |
| PCB Clamping: | Pneumatic | No.of Feeders Station: | 64 PCS |
| No.of Head: | 20 PCS | Mounting Speed: | 80000 CPH |
| Power: | AC 380 V | Operating Environment: | 6KW |

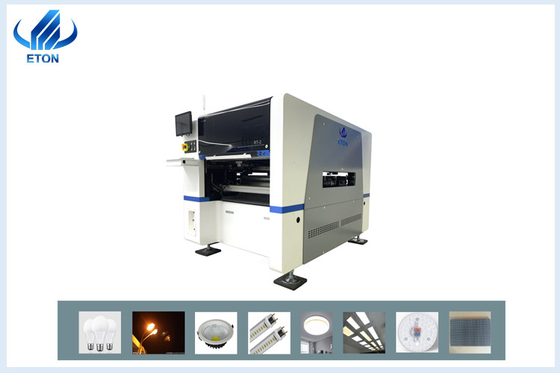

Led bulb assembly line machine automatic led drivers making machine
Product Description
1. This is multifunctional machine with double module,total 20 head,each part 10 head, can produce two types of products at the same time.
2. The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.

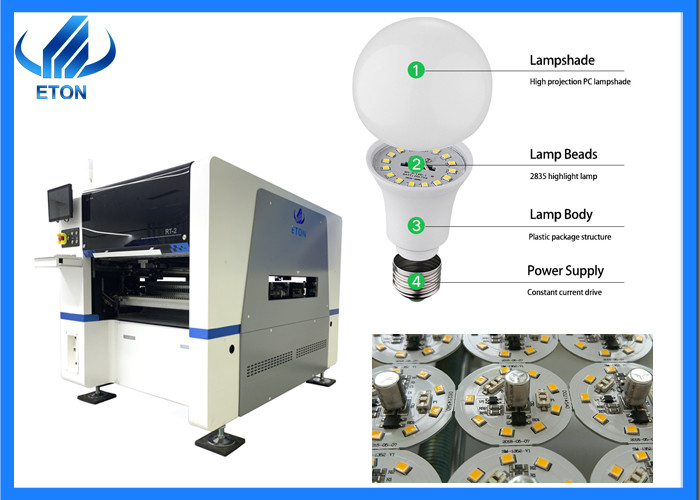

3. It's intelligent,can produce different types of LED light and electric board,such as bulb ,strip, Panel, Downlight, streetlight,power driver, other electronic boards, etc
4. Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
5. It is highspeed machine,the optimum speed is 80000CPH
|
Dimension (L*W*H)
|
1200*1930*1500mm
|
|
Total weight
|
2500kg
|
|
PCB Length width
|
Max:450*330mm Min:80*80mm
|
|
PCB thickness
|
0.1-6mm(If<0.6mm need jig)
|
|
PCB clamping
|
pneumatic
|
|
No.of feeders station
|
64 PCS
|
|
No.of head
|
20 PCS
|
|
Mounting speed
|
80000 CPH
|
|
Power
|
AC 380 V
|
|
Operating environment
|
6 KW
|
Company Profile
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.
1. Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support
2. Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month
4. Good and professional service. Provide engineer Door-to-door service, support video online training, video training

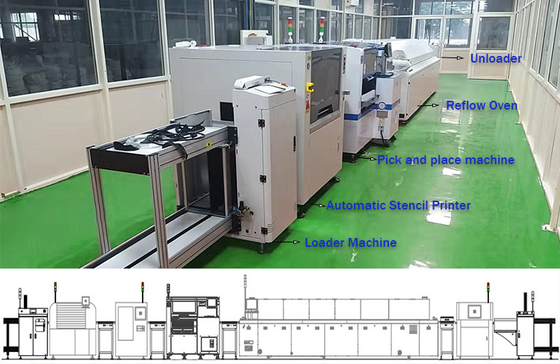

share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
After sales sevice
Product Packaging & Delivery
FAQ
Q1: What are the main LED products o our machines for?
A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply: bulb,tube strip lamp panel. Down light, street light, ceiling light. wall washer light and so on.
Q2:What's about the guarantee of the machines?
A: The maintenance:during warranty,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.
Q3: How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
