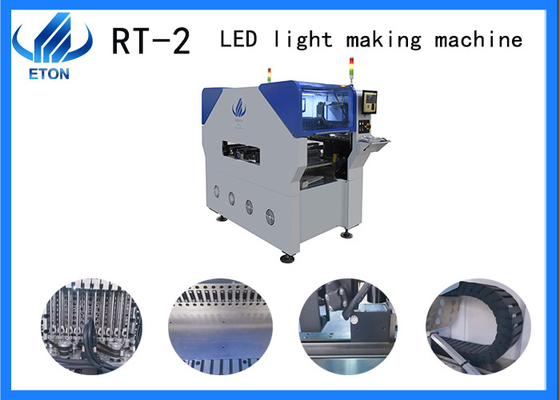

Double rails 20 nozzles 80000 CPH multi-function SMT machine LED bulb making machine

Double rails 20 nozzles 80000 CPH multi-function  SMT machine LED bulb making machine
Double rails 20 nozzles 80000 CPH multi-function  SMT machine LED bulb making machine Double rails 20 nozzles 80000 CPH multi-function  SMT machine LED bulb making machine

Large Image :  Double rails 20 nozzles 80000 CPH multi-function SMT machine LED bulb making machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: RT-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Vacuum wooden box
Supply Ability: 50 PCS/month
Detailed Product Description
Name: LED Mounting Machine Length: 1200mm
Width: 1930mm Height: 1500mm
Total Weight: 2500kg No.of Camera: 4 Sets
PCB Thickness: 0.1-6mm Mounting Speed: 80000CPH

Double rails 20 nozzles 80000 CPH multi-function SMT machine LED bulb making machine
Product introduce
our multi-function machine RT-2 is equivalent to the upgraded version of RT-1. Compared with the single-module of RT-1, this RT-2 multi-function machine has double module , 20 nozzles and 64 feeders. The ideal production capacity is also twice that of RT-1, reach 80000CPH. In addition, this type of multi-function machine also has an exclusive patented technology: group take and separate mount and separate take and separate mount. This technology ensures the accuracy of mount.

Features:

  • Magnetic linear motor multifunctional pick and place machine
  • Mounting components: LED chip, capacitors, resistors, IC shaped components, etc.


Exclusive patented technology:

  • Electric feeder feeding system
  • Vision alignment flight identification, mark correction
  • Auto-optimization after coordinates generated, etc


Technology parameter


PCB length width:

Double rails: max 450*300(non-omnidirectional610*300)
Min80*80mm
Single rail:max450*540mm(non-omnidirectional610*540)
Min:80*80mm

Mounting mode:

Group picking and separately placing
Separately picking and separately placing

Components space:0.2mm
Power:380AC
Power consumption:6KW
Mounting precision:±0.04mm
Mounting speed:80000CPH
Mounting height:standard≤15mm(height customize)

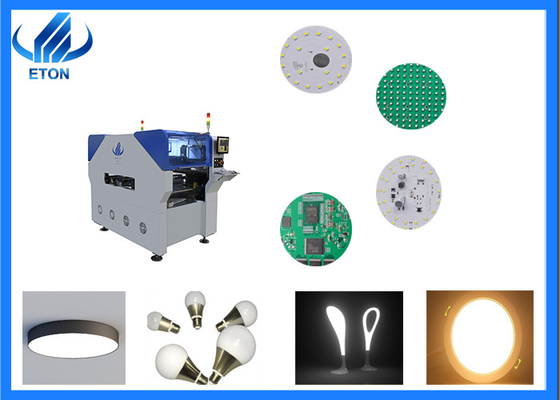

Double rails 20 nozzles 80000 CPH multi-function  SMT machine LED bulb making machine 0
SMT machine parts

When the mounter is working, it needs to be combined with various accessories for production and installation. If there are no accessories, the mounter cannot carry out full-automatic production, so accessories are very important. So what are the functions of Mounter accessories? Let's have a look.

1. Cylinder

The cylinder plays the role of lifting and stopping in the mounter. At the mounting head of the mounter, the cylinder plays the role of stopping movement in the setting process of the mounting head. The cylinder plays the role of lifting and lowering for the mounter on the mounter workbench according to the signal provided by the system.

2. Synchronous belt

The synchronous belt plays the role of transmitting power in the mounter. The synchronous belt drive has the characteristics of no slip, low noise, stable transmission and large range. And can work normally in bad places.

3. Filter

The filter of the mounter is generally used for compression filtration in the mounting process, which can ensure the cleaning of compressed gas. If there is no filter, it will affect the grasping of the suction nozzle during production, thus directly affecting the mounting effect.

4. Conveyor belt

The conveyor belt is used as a conveyor for mounting products on the mounter. In the full-automatic production process, transmission plays a vital role. We can carry out intelligent process through the conveyor belt.


FAQ
Q1:Can you support the whole SMT production line?
A:Yes,we can support the whole SMT production line, we are very professional on the filed.

Q2: How is the training?
A: After buying our machine, we will send online training video or send our engineer to your factory, and then we will train your people to operate this machine.

Q3: Does your machine have quality certificate?
A: Our machine have pass CE certificate, SIRA, ISO and have patent.

Q4: :How many hours does the machine can operated per day?
A:Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
