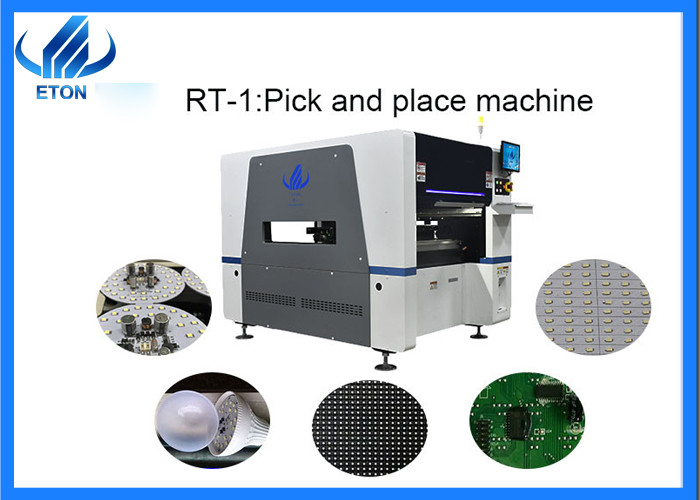

Single module Led bulb 10 head automatic pick and place machine
Machine introduction:
1.Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
2.The max PCB size is 450*350 mm, the min size is 80*80 mm.
3.It has 10 nozzles, which mounting speed reached 40000CPH.Electronic feeder feeding system.
4.Vision alignment flight identification, Mark correction.
5.This machine is suitable for many products.Such as led street light, led bulb, power driver, Circuit boards, down light etc.
Machine main parameter:
| Model |
RT-1 |
| Dimension(L*W*H) |
1200*1930*1500mm |
| PCB length width |
Max:450*350mm;Min:80*80mm |
| Weight |
2000kg |
| Mounting speed |
40000cph |
| Power consumption |
4KW |
| No. Of feeders station |
32 PCS |
| No. Of head |
10 PCS |
Company profile:
ETON Company: a leading manufacturer of automatic high speed pink and place machine. The largest high teach Led light making machine manufacturer in China. Obtained a number of intellectual property technologies including 9 Invention patents,112 Practical patents and 12 software copyrights.
ETON Industrial park: There is 5,0000 square meters modern intelligent industrial parks. Having more than 300 employees .Equipped with an advanced processing and manufacturing centers.There are various machine,the fastest capacity reached 250000CPH,which has broken world record.
Related machine:
Besides pick and place machine, we have many related machine. Apply to SMT automatic production line.
Our advantages:
- The Camera adopts Germany imported spare part, automatic visual auxiliary positioning, positioning is accurate, convenient.
- Our feeder is electric feeder, can satisfy the requirement of different SMT LED components.
3. Machine’s software is easy to operate, can update anytime by free.
- Decades experiences in the pick and place machine field.
5. 80% larger and listed led factory are our client and occupied a vast foreign LED market.
- We have our own machine industrial park, which is used to produce and manufacture machine.
Packing:
Our machine are packed in wooden boxes.The specific steps are as follows:
Services:
1.Free technical support: 7*24 hours online technical service.
2.Free installation and training: we have established offices overseas. We can arrange engineers to go directly to the factory for free installation and training.
3.Free upgrade software: machine software is developed by our company, so we provide life-long free upgrade software for customer for customer who purchase the machine.
4. We can provide SMT production line solution with you.
FAQ:
1.Can you support whole SMT line?
Yes, we can provide whole line solution if you want. We are very professional on SMT field.
2.What is the difference of automatic line and semi automatic line ?
The big difference of auto line and semi-auto line is the price and the labor. Automatic line required higher cost but save much cost of labor. Usually one operator is enough. But semi automatic line need at least 2 workers.
3.How about the After-sale Service?
We provide one year warranty, during the warranty period, if any wrong, we will send the accessories free of charge.
4.Which kind of raw material should I prepared for SMT Line?
For SMT line, the raw material need to be prepared mainly include:
PCB: It is the support body of electronic components ;
Solder paste/ stencil for Stencil printer machine;
Components(such as led chip, resistor, IC, etc)/ Feeders/ Nozzles for Pick and place machine;
5.Can I use CIF price?
CIF price need add the freight, insurance fee on the basis of EXW price, and the india delivery forwarder
will charge ours more than yours. so actually to do EXW will more simple and save cost for you.
