Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2550*1650*1550mm | PCB Thickness: | 0.5-5mm |
|---|---|---|---|
| System: | Windows7 | Mounting Precision: | +-0.04mm |
| Mounting Speed: | 45000CPH | Feeding Way: | Electric Feeder With Double Motor |

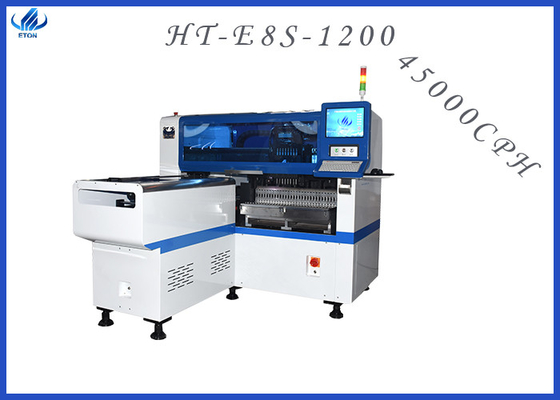

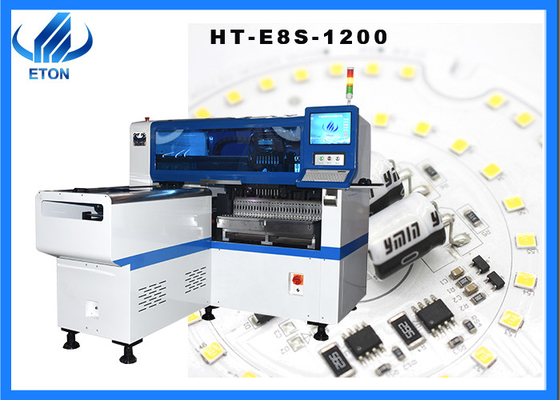

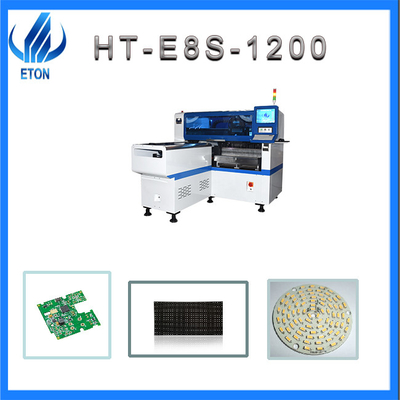

12 heads high speed SMT mounting machine for led light production line
Features
Single module magnetic linear motor multifunctional pick and place machine
Mounting components: LED chips/capacitors/resistors/lens/IC/shaped components,etc.
Component: Min. size 0402 Max. height 15mm
Application: Power driver. electric board. lens. linear bulb.DOB, household appliance etc.
Exclusive patented technology
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
| Length | 2550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1700 kg |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| System | Windows7 |
| Software | R&D independently |
| No. of Camera | 2 sets of imported camera |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
Company Profile
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.
1. Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support
2. Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month
4. Good and professional service. Provide engineer Door-to-door service, support video online training, video training share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
Exhibitions
We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Production line
FAQ
1. Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
2. Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
3. Q: What is your payment terms?
100% payment before delivery or 50% deposit in advance and the rest before shipment.
