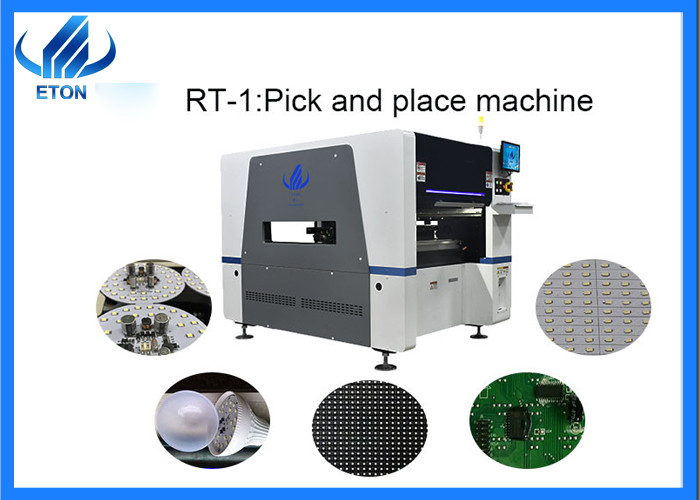

Single module Led bulb 10 head automatic pick and place machine
Products features:
1.This machine belongs to single module.It has 10 head.
2.This machine mounting speed is 40000CPH.
3.Apply to led bulb, power driver,street light and so on.
4.It has 2 sets of camera, high mounting accuracy. Mounting method:group picking and separately place, separately picking and separately place.
5.software upgrade:Independent research and development of software, and enjoy free software upgrade service for life.
Machine parameter:
Machine main parameter:
| Model |
RT-1 |
| Dimension |
| Length |
1200mm |
| Width |
1930mm |
| Height |
1500mm |
| Total Weight |
2000kg |
| PCB |
| PCB Length Width |
Max:450*350mm Min:80*80mm |
| PCB Thickness |
0.1-6mm |
| PCB Clamping |
Pneumatic |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
2 PCS |
| Accurate image recognition |
| Vision alignment, MARK correction |
| Mounting Precision |
±0.04mm |
| Mounting Height |
≦15mm |
| Mounting Speed |
40000 CPH |
| Components |
LED , capacitors, resistors, shaped components, etc. |
| Components Speed |
0.2mm |
| No. of Feeders Station |
32 PCS |
| No. of nozzles |
10 PCS |
| Power |
AC 380V |
| Power Consumption |
4kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Electric feeder with double motor |
Company profile:
ETON Automation Equipment Co.,Ltd was established in 2011.It is a manufacturing and process solution provider focusing on R&D , production , sales and services of SMT high-speed pick and place machines and SMT peripheral automatic equipment.We have decades of R&D experience and mature technology in this field.We have an industrial park covering an area of 50,000 square meters in jiangxi, which is dedicated to the production of machine to make machine.Our products exported to over 20 countries and regions. We have been working with numerous big companies in India, Turkey, Pakistan,Egypt etc.Having a perfect service,free installation and training. We have three engineers in India and an office.
SMT Line solution:
We have the professional suggestions for you to build the production line.
Below are the suggestion of basic steps for the pick and place progress and equipment
Machine application:
(1).This machine can mount minimum size 0402 components. And also can mount less than 22 MM high components. Including LED chips, resistors, capacitors, IC, shaped components, inductance, etc.
(2). Suitable for small PCB products, Such as LED bulb. LED linear bulb, LED DOB bulb, LED street light, LED down-light, LED Driver and Small home appliance electronic boards, etc.
(3). The optimal speed for LED lighting can reach 40000 CPH.
Market:
We occupied a vast foreign LED market, 80% larger and listed led factory are our client .
Our advantages:
1.We are leading manufacturer of automatic high speed pick and place machine.
2.80% large and listed led factory are our client.We have over decades development history.
3.We have an industrial park covering an area of 50,000 square meters in jiangxi, which has various machine.
4.We have world record-breaking high speed pick and place machine, which speed reached 250000CPH.
5.We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We
have offices in Mumbai and New Delhi, very quick to support.
