Product Details:
Payment & Shipping Terms:
|
| Length: | 3150mm | Width: | 2250mm |
|---|---|---|---|
| Height: | 1650mm | PCB Length Width: | Max:1200*300mm Min:100*100mm |
| Mounting Mode: | Group Picking And Separate Placing\separate Picking And Separate Placing | Mounting Speed: | 90000 CPH |

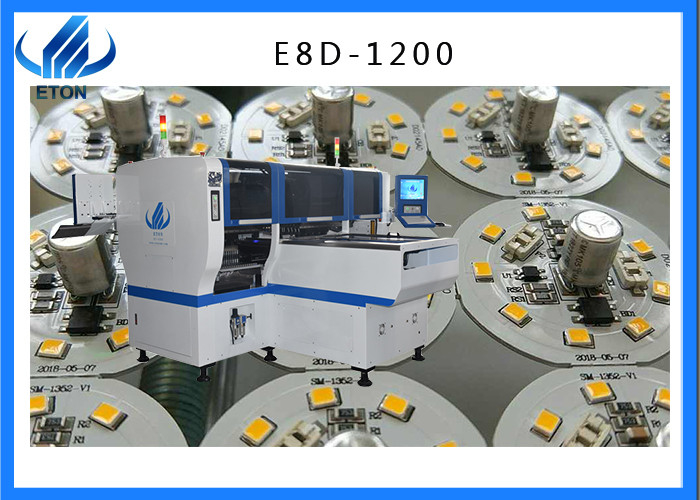

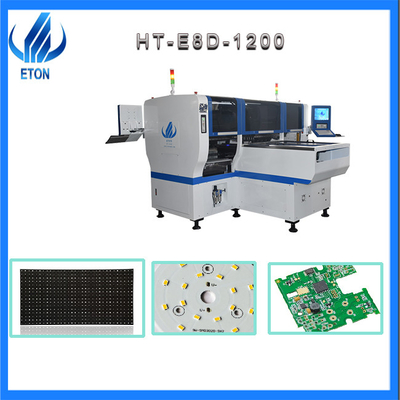

90000 CPH dual system dual module multifunctional mounter making machine <15mm automatic changing
Technical parameter
| Dimension(L*W*H) | 3150*2250*1650mm |
| PCB Length Width | Max:1200*300mm Min:100*100mm |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| PCB Clamping | Adjustable pressure pneumatic |
| PCB Thickness | 0.5-5mm |
| System | Windows7 |
| Software | R&D independently |
| No. of Camera | 4 sets of imported camera |
| Mounting Speed | 90000 CPH |
| Components | LED , capacitors, resistors, IC, shaped components, etc. |
| No. of Feeders Station | 48 PCS |
| No. of nozzles | 24 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 8 KW |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)300N/min |
The products of description
1.Dual system, dual module multifunctional mounter. To produce two different products at same time.
2.Mounting components: LED chips/capacitors/resistors/IC/shaped components/etc.
3.Component: Min. size 0402 Max. height 15mm
4.Application: Power driver. electric board. lens. linear bulb.DOB, household appliance etc.
E8D is not a dual-mode group. Each module is controlled by a set of independent programs, and both sides are independent of each other
Exclusive patented technology
1.Electronic feeder feeding system.
2.Vision alignment flight identifications, Mark correction.
3.Non-stop material re-loading function
4.Auto-optimization after coordinates generated, etc.
Display of main parts of the machine
Company
Shenzhen ETON Automation Equipment Co.,Ltd.was founded in 2011. It is a manufacturing and process solution provider focusing on R&D. production. sales and service of SMT high-speed pick and place machines and SMT periph automation equipment. The company has SMT high-speed pick and place machine division. precision solder paste sten printer division.high-speed precision dispensing equipment division, and SMT peripheral automation equipment division
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control ofthe machine, the machine uses Chinese and English interface, very easy to operate.
