Product Details:
Payment & Shipping Terms:
|
Length: | 3100mm | Width: | 2300mm |
---|---|---|---|
Height: | 1550mm | Power: | 380AC50HZ |
Mounting Speed: | 200000cph-250000cph | Mounting Mode: | Group Picking And Separately Placing |

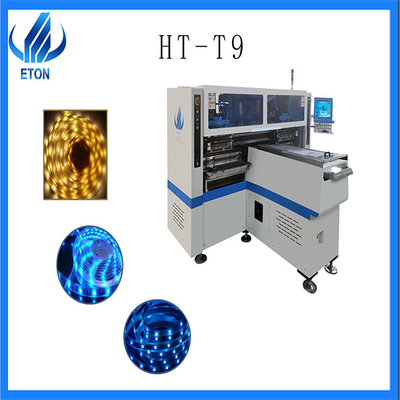

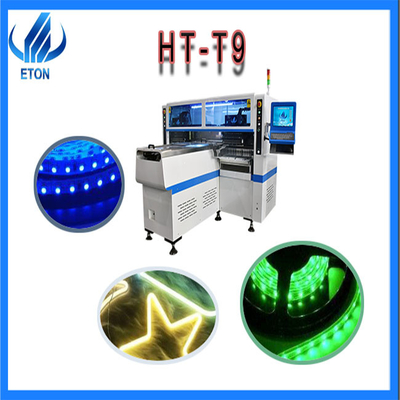

250000CPH 25M flexible LED Making machine strip Special machine for flexible strip
Machine parameters
length | 3100mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB Length Width | 250mm*any length |
PCB Thickness | 0.5-1.5mm |
PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
Mounting Mode | Group picking and separately placing |
Repeat mounting Precision | ±0.02mm (Repeat precision) |
No. of Camera | 5 PCS ( Digital camera) |
Mounting Height | ≦5mm |
Mounting Speed | 200000~250000CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Components Space | 0.5mm |
No. of Feeders Station | 68 PCS |
No. of head | 68 PCS |
Power | 380AC 50 HZ |
Power Consumption | 6kw |
Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
Feeding way | Electric feeder with double motor |
Description of the product

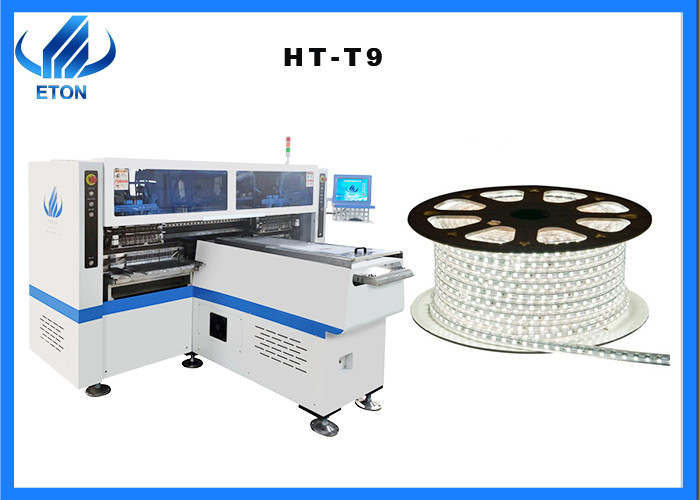

T9 is different from other high-speed machines. It is only for 250 * flexible strips of any length
Packing and payment
vacuum wooden boxes packing
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery
Company
Shenzhen ETON Automation Equipment Co. LTD, which is advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000CPH, which save much labors and space of production, got large market share in USA,KOREA,INDIA,GERMANY,EYPT,TURKEY,VIENAM,TUNISIA,THAILAND more than 20 countries.
25m flexible semi-automatic production line
Certification
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
