Product Details:
Payment & Shipping Terms:
|
| Length: | 2700mm | Width: | 2300mm |
|---|---|---|---|
| Height: | 1550mm | Total Weight: | 1700kg |
| System: | Windows7 | PCB Thickness: | 0.5-5mm |
| Repeat Mounting Precision: | ±0.02mm(Repeat Precision) | Mounting Speed: | 150000~180000 CPH |

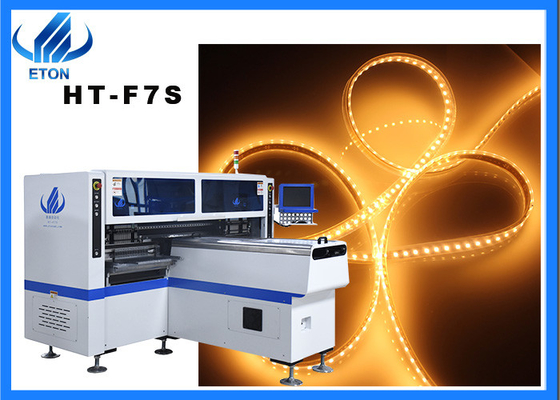

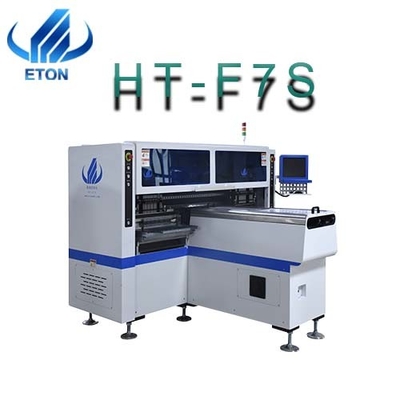

150000CPH highspeed pick and place machine Apply to the 0.6 M 0.9 M 1.2 M rigid PCB and 0.5 M 1 M LED flexible strip
Technical parameter
| Dimension(L*W*H) | 2700*2300*1550mm |
| Total Weight | 1700kg |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separately placing |
| No. of Camera | 5 sets ( Digital camera) |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
Features
Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 2~4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.
Two mounting modules, 18 nozzles for each mounting part, part A and part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.
Company show
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.
CERTIFICATE
ETON have below certification to ensure the high quality product, software patents can make the product more precious and more quick, more suitable for customer requirment. also our company care about lower consumption, Environmental friendly. contribute to the society.
Service
We can provide Five star services, from Pre-sale, On sale, after sale. we alway provide best support to you.
Pre-sale:
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
On sale:
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
After sale:
Arrange engineers to come to the factory to install, debug and teach free of charge;
One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
Every year there is an opportunity for free machine maintenance;
Visit customers regularly to understand the usage of the machine and collect customer feedback
Packing
All machines are packed with vacuum and wooden packing like the one in the pictures. Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
FAQ
Q: Are you a trade company or manufacturer?
A: Full SMT machines Top maufacturer for smt line in China; have 5200 square meters industrial park
Q: What is your delivery date?
A: About 20 days after receipt of full payment.
Q: What your main customers?
A: OPPLE, Sk YQURRO, NAVICATE, FSL,OML,SHIMMERING,NTL, etc.
Q: Why choose you?
A: Top brand SMT Supplier in China; Professional Supplier on Alibaba; professional R&D team and service team.
