Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Weight: | 2500 Kg | Dimension: | 1200*1930*1500 Mm |
| Feeders: | 64 Pcs | Pcb Thickness: | 0.1-0.1(if <0.6 Mm Need Jig) |
| Speed: | 80000 Cph | PCB Length Width: | Bilateral Dual Track :Max: 450*300mm (Non-omnidirectional 610*350mm) One-sided Single Track:Max:450*540mm (Non-omnidirectional 610*540mm) Min: 80*80mm |
| Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing | Mounting Precision: | ±0.04mm |

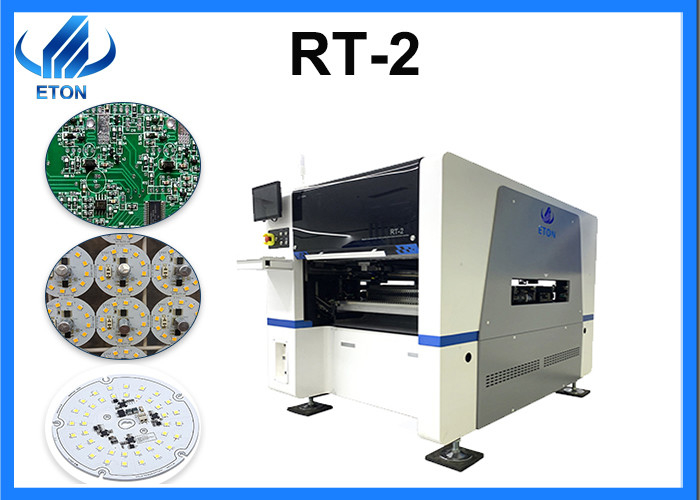

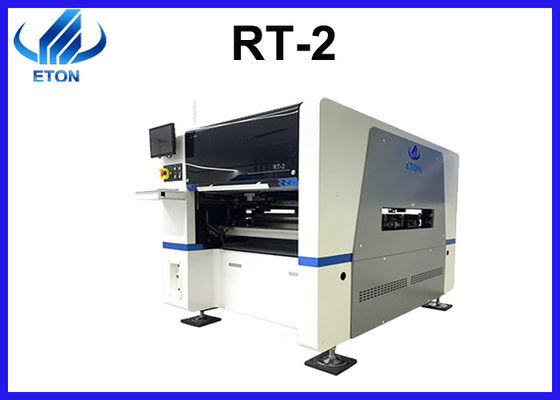

Vision alignment multifunctional mounter 80000 capcity with 20 heads SMT machine
Description: led lights making machinery RT-2 with a high speed of 8000 capacity, that can mounting various components, and LED products, to name only a few:
mounting components: LED chip, capacitors, resistors, IC, shaped components, etc.
LED Products: led bulb, led tube, LED street light, power driver and circuit board etc.
Machine main features
Machine main parameter
| Model | RT-2 |
| PCB length width |
Bilateral dual track :Max: 450*300mm (Non-omnidirectional 610*350mm) One-sided single track:Max:450*540mm (Non-omnidirectional 610*540mm) Min: 80*80mm |
| PCB thickness | 0.1-6mm (if <0.6mm need jig) |
| PCB clamping | pneumatic |
| Mounting mode | Group picking and separately placing, separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 80000 CPH |
| No. of feeders station | 64 PCS |
| No. of head | 20 PCS |
Service
For the part of services, we ensure our clients to enjoy a suitable experience of buying and using our machine when in production, so that we provide some comfortable services as blowing:
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
FAQ
Q1. What is your usual payment term?
A1. Our usual payment term is T/T, that requires to pay 30% in advance, and pay the balance off before the delivery of the goods.
Q2. How can I look around your industrial park if I am on aboard?
A2. If you have Chinese agent we can make an appointment to show you our company, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
Q3. What is your machines quality?
A3. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q4. How many hours does the machine can operate per day?
A4.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q5. Is the machine easy to operate?
A5. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
