Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1200*1930*2500 | Total Weight: | 2500kg |
|---|---|---|---|
| PCB Length Width: | MAX:450*300mm MIN:80*80mm | PCB Thickness: | 0.1-6mm(if<0.6mm, Need Jig) |
| No.of Camera: | 4pcs | Mounting Speed: | 80000CPH |
| No.of Feeders Station: | 84pcs | No.of Head: | 20pcs |
| Power Consumption: | 6kw | XYZ Axis Drive Way: | High-end Magnetic Linear Motor |

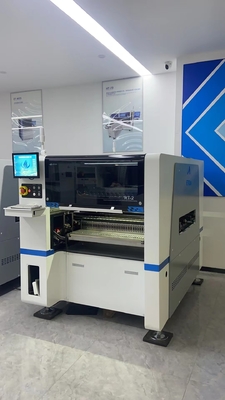

Updated mounter machine for smt production line.
Operation process of SMT placement machine:
1. To understand the common signs of the placement machine;
2. Turn on the power of the placement machine;
3. Check the environment around the placement machine;
4. Turn on the placement machine;
5. Set the working status of the placement machine;
6. Check the placement Whether the machine nozzle is bad;
7. SMD production process;
8. Shut down.

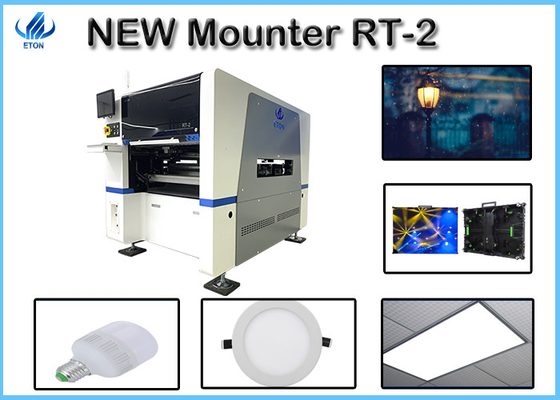

Features of new mounter : ETON
Applies to the Linear motor, Servo motor, Stepper motor.
Strong ,firm and stable design.
Pneumatic clamps to ensure the pcb board position.
Orignial head structure, special materail and structure, the height can adjustable.
With replenishment system.
Specification of new mounter: ETON
| 1.PCB thickness: 0.1-6mm(if<0.6mm, need jig) |
| 2.Dimension: 1200*1930*1500mm |
| 3.PCB length width: Max:450*300mm, Min:80*80mm |
| 4.Placement head: 20 pcs |
| 5.Feeders station: 84 pcs |
| 1.power driver |
| 2.led bulb |
| 3.lens |
| 4.panel lights, street light, downlight |
| 5.electric board. |
Was founded in 2011, we offer customer-inspired solutions in a range of smt industry.
ETON is dedicated to making quality products that help our clients operate more efficiently and effectively.
ETON is guided by the quality principles of Client- oriented, Quality first, Contiuouns improvement!
Have Strict quality control process, create value for customers.
Mounter equipment and peripheral machine in SMT, Leading manufacturer.
Welcome to visit us, ETON will leading you come to the world of smt machine! Our machine come to many countries, produce many kinds of product, so many customer have a good experience.
Best Service for you: ETON
Free service, such as free installation, free training, Software Upgrade for free.
High quality certificates: CE, SIRA, CCC , ISO, etc.
Local service, one year visist customer twice.
Rich experience engineer for you.
Warranty regular for one year.
FAQ: ETON
| 1. who are we? | We are based in Guangdong, China, start from 2011, exported to more than 20 countries. There are total about 300 plus people in our office. |
| 2. how can we guarantee quality? | Always final Inspection before shipment; |
| 3.what can you buy from us? | Reflow Oven,Stencil Printer/ Pick and Place Machine/ Wave Soldering Machine/ PCB Loader and Unloader |
| 4. why should you buy from us not from other suppliers? |
As a leading SMT factory solutions provider with 11 years' SMT industry experience,ETON provides customers with professional solutions and service. ETON offers local customers systematic one-stop SMT solutions. |
