Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2550*1650*1550mm | PCB Size: | Max:1200*500mm Min:100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5-5mm | Application: | SMT PCB Assembly Production Line |
| Applicable Components: | LED Chip,capacitors,resistor,IC,shaped Component | Mounting Mode: | Group Picking And Separately Placing 、separately Picking And Separately Placing |
| Mounting Speed: | 45000 CPH | No.of Feeders Station: | Single Module 28 PCS |
| No.of Head: | Single Module 12 PCS | Power Consumption: | 4KW |

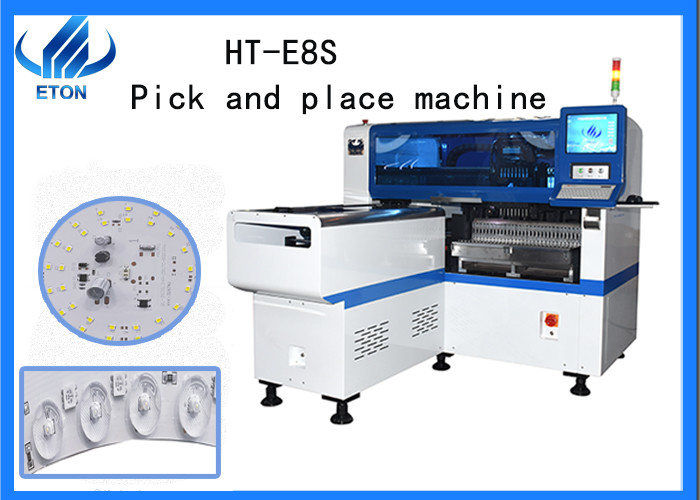

HT-E8S LED Tube Pick And Place Machine
Product description
HT-E8S SMT pick and place machine is for led, Lens, capacitors, resistors, IC, Shaped components, etc. Apply to Led lamp manufacturer, PCB production line etc .
HT-E8S is a single module single system multi-functional SMT pick and place machine. Vision for the flight identification, mark correction. And it’s identified the correct position by camera. So it’s high precision and good stability.
Technical parameter
| HT-E8S PICK AND PLACE MACHINE PARAMTER | |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group Picking and separate placing/Separate picking and separate placing |
| No. of camera |
2 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈15mm |
| Mounting Speed | 45000CPH |
| Power Consumption | 4KW |
| Conveyor Transmission | Max Length:1200mm |
| Transmission Speed | ＞1000mm/sec |
| Electrical control | Independent research and development by ETON |
| X.Y.Z Axis Driving | High-end magnetic linear motor + servo motor |
Features

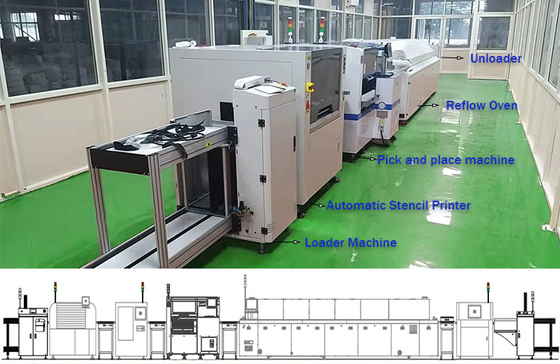

SMT Line

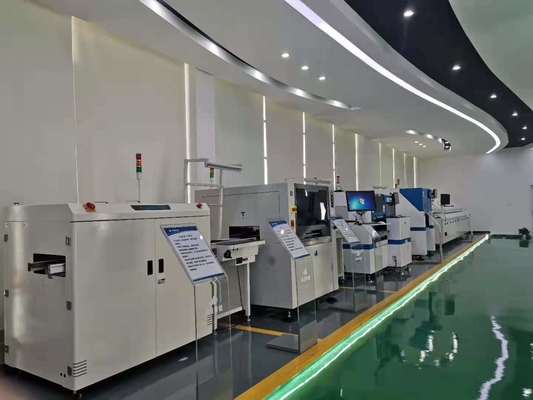

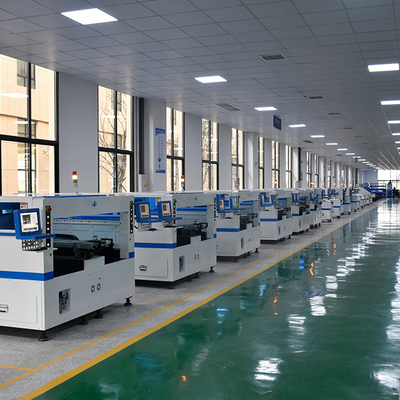

Company information
Shenzhen Eton Automation Equipment Co., Ltd established in 2009. Whichis national high-tech enterprise. We concentrate on building national brand and provides customers with professional, efficient, low consumption and specializes in R$D, production, sales and service of SMT automatic high-speed placement machine.
Eton owns nearly 200 employees, 80 of them are production work man for the pick-and-place machine, and other 40 engineers are responsible for developing the domestic pick-and-place machine.
Our services
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop
covering area with best prices!
