Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Dimension: | 3150*2250*1650mm |
|---|---|---|---|
| Weight: | 2500kg | PCB Thickness: | 0.5-5mm |
| Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing | Software: | R&D Independently By ETON |
| No. Of Camera: | 4 Sets | Mounting Speed: | 90000 CPH |
| Head: | 24 PCS Dobule Module | Feeder Station: | 48 PCS Dobule Module |
Multifunctional automatic components making 24 PCS head 90000CPH pick and place machine

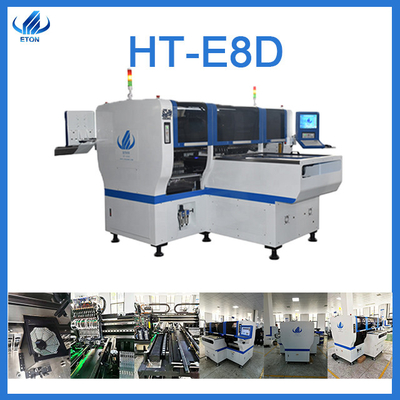

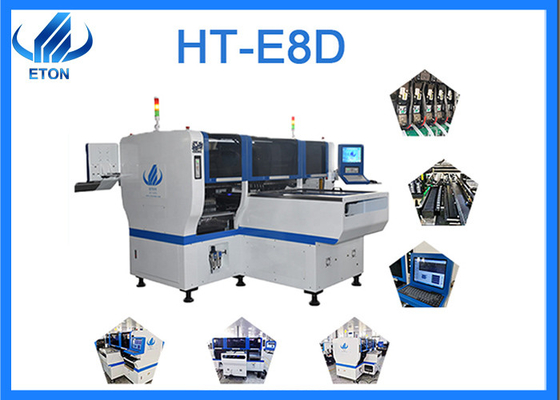

The Feature of HT-E8D Multifunctional pick and place machine
1. It can produce 2 different products at the same time.
2. It has 4sets of camera ( vision for the flight identification and Mark correction).
3. The Optimum capacity will reach 90000CPH.
4. It is the Enhanced version of HT-E8S.
5. Auto-optimization after coordinates generated
6. The Mounting mode is Group picking and separately placing, separately picking and separately placing.
Technical parameter
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total weight | 2500kg |
| PCB Length width | Max: 1200*300mm Min: 100*100mm |
| PCB Thickness | 0.5-5mm |
| Transmission speed | ≤1000mm/sec |
| Conveyor transmission | Max length: 1200mm |
| Mounting precision | ±0.04mm |
| Component space | 0.2mm |
| Component height | <15mm ( Automatic changing) |
| Transmission direction | Both direction (Option ) |
| No. Of feeders station | 48PCS Double module |
| No. Of head | 24PCS Double module |
| Operating environment | 23℃±3℃ |
| Power consumption | 8KW |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
| Feeding way | Electric feeder with double motor |
Company Introduction
ETON was founded in 2011. Jiangxi intelligent manufacturing Park was completed in 2020. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation.
ETON’s production include two types, multifunctional pick and place machine and high-speed professional pick and place machine. The highest speed will reach 250000CPH and produce 4 different types of material at the same time. In 2022, the newest equipment has been born——ETON HONOR SERIES
FAQ:
What are the main appliance about the pick and place machine?
We have many different machine, and different machines apply to different appliance. The main products include bulb, tube, flexible strip, panel light, down light,street light,ceiling light, wall washer light etc.
What about the mode of transport?
Both sea, air and road are OK.
What components can be mounted?
LED chip, resistors, capacitors, IC, crystal, shaped component etc.
Do you provide the complete production line machine?
We have a complete SMT line of machine, such as solder paste printer machine, conveyor, reflow oven. We also offer customization.
How about the operating software ?
Our software is R&D independently by ourselves.
