1. Mounter Introduction

Pick and place machine, also known as "Mounter" and "surface mount system", is a kind of equipment configured after dispensing machine or screen printing machine. It is a kind of equipment that accurately places surface mount components on PCB pad by moving the mounting head. It is used to realize high-speed and high-precision placement of components. It is the most critical and complex equipment in the whole SMI and production.

2.Introduction to structure and function of Mounter

• Frame is the foundation of the machine. All transmission, positioning organization and feeder are firmly fixed on it. Therefore, it is necessary to have satisfactory mechanical strength and rigidity.
• PCB transmission and bearing organization - the transmission organization is an ultra-thin belt transmission system placed on the guide rail. Its function is to send the PCB to the predetermined position, and then send it to the next process after pasting.
• Drive system - it is the key organization of the mounter and the primary index to evaluate the accuracy of the mounter. It includes XYZ transmission layout and servo system. Its functions include supporting the movement of the mounting head and supporting the bearing plane of PCB.

3. Machine parameter

3.Features

• Mounting components: LED chip, resistor, capacitor, IC, lens, shaped components, etc.
• Component: min.size 0402 max.height 15mm

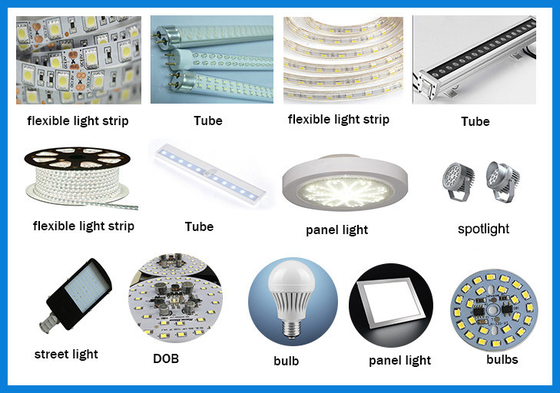

• Application: power drive, electric board, lens, DOB, linear bulb, household appliance, etc.

4.Application

6.Package

7.Service

8.FAQ

Q: Why do you choose our product?

• our product quality is guaranteed, and we have overseas local engineers, can arrange door to door installation.
• Software lifetime free upgrade
• Free installation and training

Provide 1-2 times a year free for machine repair, after the warranty period.

Q: This is the first time I use this kind of machine, is it easy to operate?

A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.

Q:What is the difference between semi-automatic production line and full-automatic production line?

A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line

Q: About technical offer

A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.

If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
