Product Details:
Payment & Shipping Terms:
|
| Length*width*height: | 2550*1650*1550mm | Warranty: | 1 Year |
|---|---|---|---|
| Total Weight: | 1700kg | Mounting Speed: | 45000CPH |
| No.of Camera: | 2 Sets | Components Space: | 0.2mm |
| Power Consumption: | 4 Kw | Feeding Way: | Electric Feeder With Double Motor |

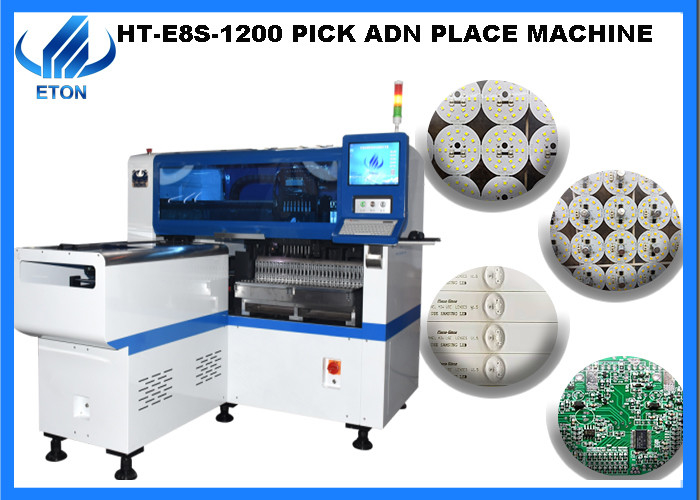

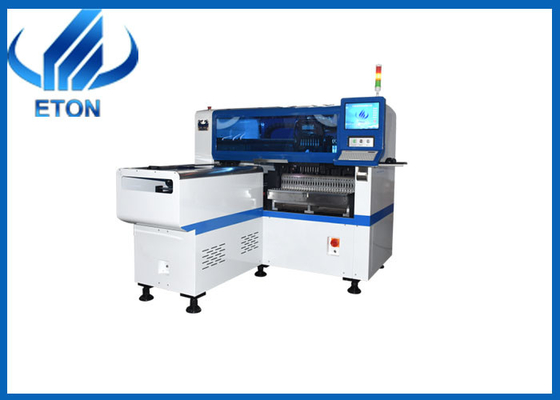

45000 CPH multifunctional pick and place machine with 2.55m
Machine features
Single module magnetic linear motor multifunctional pick and place machine.
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Vision for the flight identification, mark correction

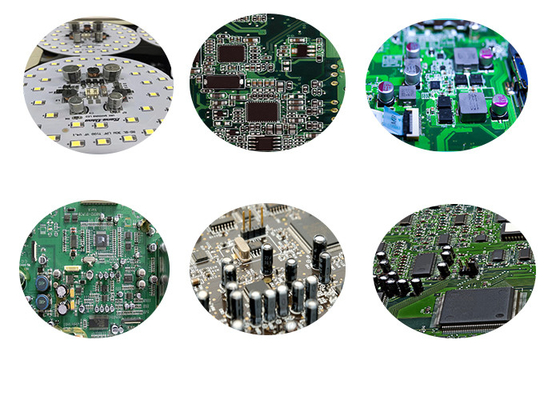

Application: Power driver. Electric board. Lens.DOB bulb. Linear bulb. Household appliance etc.
Electronic feeder feeding system
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
It has 28 PCS single module feeders station.
Its speed can reach 45000CPH.
| E8S-1200 | ||
| PCB | PCB length width |
Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and separately placing,separately picking and separately placing | |
| O.S. | System | Windows 7 |
| software | R&D independently | |
| Vision system | No. Of camera |
2 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 45000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No. Of feeders stations | 28 PCS single module |
| No. Of nozzles | 12 PCS single module | |
Application
Exhibition
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Package
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
What are the advantages of your company?
We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. We can provide latest information about technology and equipment.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed
