Product Details:
Payment & Shipping Terms:
|
| Length*width*height: | 2550*1650*1550mm | Warranty: | 1 Year |
|---|---|---|---|
| Total Weight: | 1700kg | Mounting Speed: | 45000CPH |
| No.of Camera: | 2 Sets | Components Space: | 0.2mm |
| Power Consumption: | 4 Kw | Feeding Way: | Electric Feeder With Double Motor |

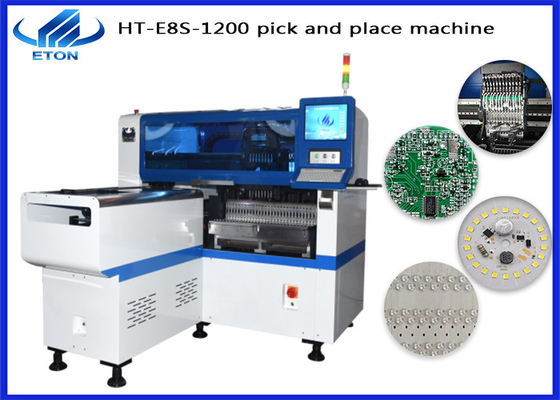

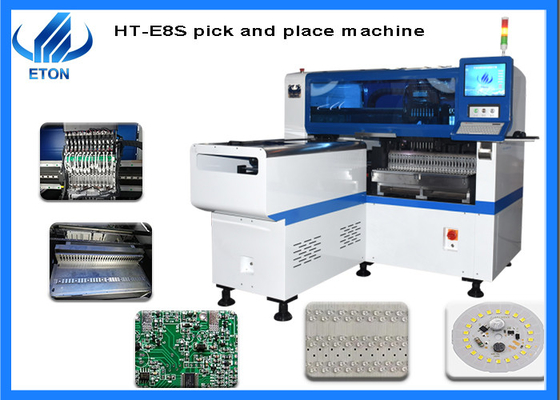

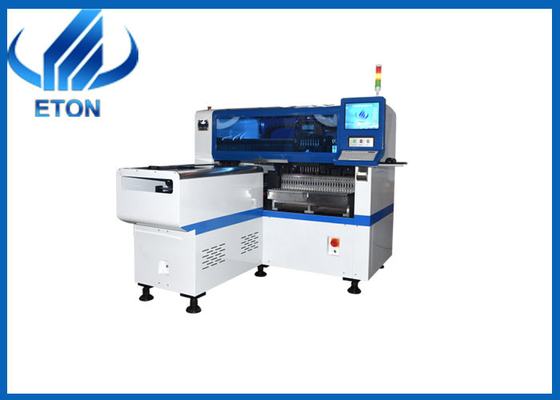

high quality magnetic linear motor multifunctional mounting machine for led light
Machine parameter
| E8S-1200 | |
| Dimension | 2550*1650*1550mm |
| Total weight | 1700kg |
| PCB length width |
Max:1200*500mm Min:100*100mm |
| No. Of camera | 2 sets |
| Mounting speed | 45000CPH |
| Components space | 0.2mm |
| Feeding way | Electric feeder with double motor |
| No.of feeder | 28 PCS single module |
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Application: Power driver. Electric board. Lens.DOB bulb. Linear bulb. Household appliance etc.
SMT product line
Step1: Putting the solder paste on the PCB board.
Step2: Transmission the PCB board to pick and place machine.
Step 3: Mounting the components on the PCB board
Step 4:Transmission the PCB board to reflow oven machine.
Step 5: Heating the PCB board.
Company introduction, exhibition
ETON was founded in 2011. Our company is the leading manufacturer of global led light high speed pick and place machine. We have more than 10 years of R&D experience and mature technology and our products are exported to more than 20 countries and regions, including South Korea,India, Vietnam, Tunisia, Iran etc. ETON obtained a number of intellectual property technologies ,including 9 invention patents, 112 practical patents,12 software copyrights. And we have also won many prestigious awards, such as Shenzhen high-tech enterprise, Guangdong high-tech enterprise, China high-tech enterprise, Shenzhen TOP Brand and so on.
Features
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Component: Min. Size 0402 Max. height 15mm.
Application: Power driver. Electric board. Lens.DOB bulb. Linear bulb. Household appliance etc.
Electronic feeder feeding system
Vision alignment flight identification, Mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
It has 28 PCS single module feeders station.
Its speed can reach 45000CPH.
Package
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
How is the transportation?
By sea, by air and land transportation.
