Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2500*1650*1550mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Size: | Max:1200*500mm; Min:100*100mm | Mounting Speed: | 45000 CPH |
| Head: | 12pcs | Warranty: | 1 Year |

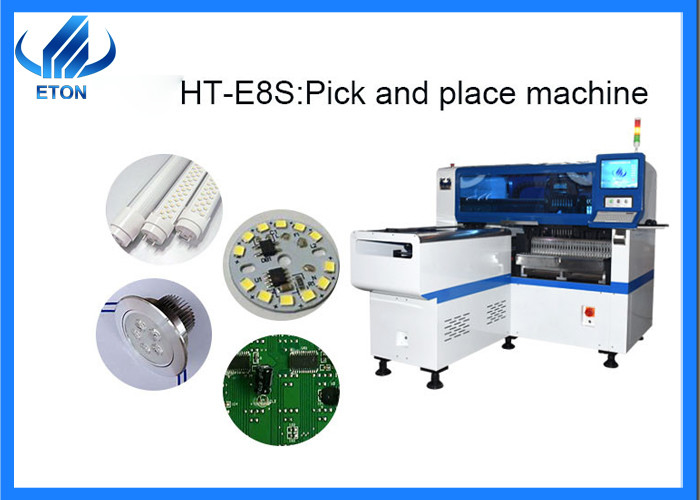

Single modual DOB bulb 12 head automatic pick and place machine
Features:
Mounting components: LED chip, resister, capacitors, lens, shaped components, etc.
Component: Min: size 0402; Max: height 15mm.
12 nozzles, 90000CPH.
Application:power drive. Electric board. Lens. DOB bulb.linear bulb. Household appliance etc.
Electronic feeder feeding system.
Non-stop material re-loading function.
Machine parameter:
| Model | HT-E8S-1200 |
| Length | 2550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1700 kg |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power Consumption | 4 KW |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Company profile:
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present, as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continuously and create superior value for our customers.
SMT line solution:
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.Below are the suggestion of basic steps for the pick and place progress and equipment :
Semi-automatic stencil printer→Single-rail conveyor→Pick and place machine(HT-E8S-1200)→Single-rail conveyor→Reflow oven
Our advantages:
1.We are leading manufacturer of automatic high speed pick and place machine.
2.80% large and listed led factory are our client.We have over decades development history.
3.We have an industrial park covering an area of 50,000 square meters in jiangxi, which has various machine.
4.We have world record-breaking high speed pick and place machine, which speed reached 250000CPH.
5.We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
Services:
FAQ:
1.How about the machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
2.Can you support whole SMT line?
Yes, we can provide whole line solution if you want. We are very professional on SMT field.
3.Which language is the software?
English and Chinese is OK.
4.Can you provide software updates?
Free to upgrade software for lifetime.
5.Do you have a product certification certificate?
Our products have CCC, CE, SRIA certification.
