Product Details:
Payment & Shipping Terms:
|
Length: | 3150mm | Weight: | 2250mm |
---|---|---|---|
Height: | 1650mm | NO.of Camera: | 4PCS |
NO.of Feeders: | 48pcs | Feeding Way: | Electric Feeder With Double Motor |
High Light: | Multi Functional Pick And Place Machine,Pick And Place Machine 380VAC |

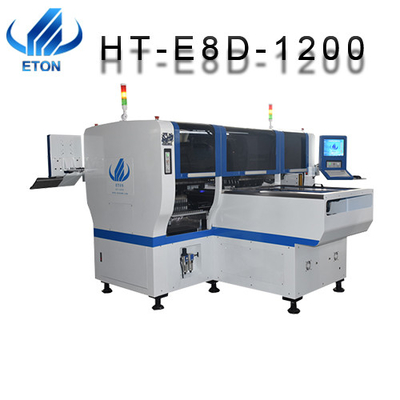

48 feeders 380AC50HZ multifunctional pick and place machine
Advantage
Dual system, dual module multifunctional mounter. To produce two different products at same time.

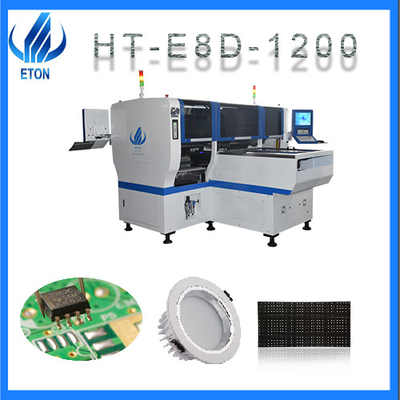

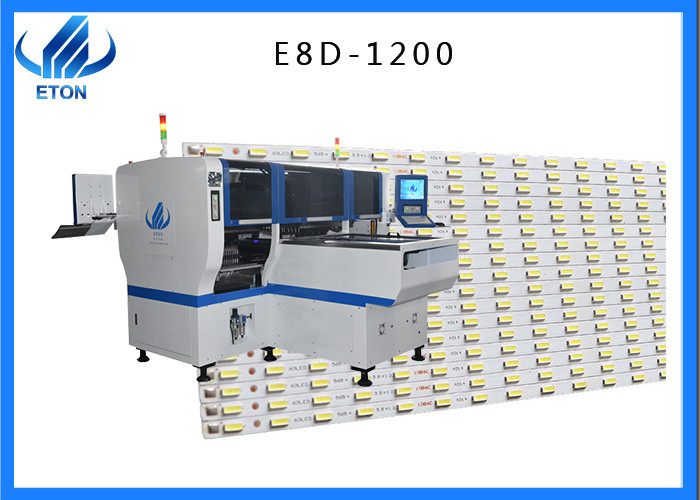

The maximum size of e8s-1200 PCB is 1200 * 300mm, which means that e8s can be pasted with a variety of products, such as panel lamp, bulb, street lamp, display screen, Down light, lamp tube, spotlight, etc. Its minimum PCB board is 100 * 100mm, and the components that can be attached include capacitance, resistance, IC, lens, special-shaped components, etc. The minimum size of mounting components is 0402 and the maximum is 15mm. It can also be customized. Compared with E8S, E8D has higher production capacity, and the optimal production capacity per hour can reach 90000 CPH. For RT-1, E8D has higher accuracy.
Exclusive patented technology
1.Electronic feeder feeding system.
2.Vision alignment flight identifications, Mark correction.
3.Non-stop material re-loading function
4.Auto-optimization after coordinates generated, etc.
Technical parameter
Dimension(L*W*H) | 3150*2250*1650mm |
PCB Length Width | Max:1200*300mm Min:100*100mm |
Mounting Mode | Group picking and separate placingseparate picking and separate placing |
PCB Clamping | Adjustable pressure pneumatic |
PCB Thickness | 0.5-5mm |
System | Windows7 |
Software | R&D independently |
No. of Camera | 4 sets of imported camera |
Mounting Speed | 90000 CPH |
Components | LED , capacitors, resistors, IC, shaped components, etc. |
No. of Feeders Station | 48 PCS |
No. of nozzles | 24 PCS |
Company
In 2007, Taipei R & D center was established to start the technology and patent research and development of LED special Mounter; Hong Kong hong ETON Co., Ltd. was established in 2008. In 2020, ETON Jiangxi intelligent park will be put into use.
Exhibition
We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Packing
All machines are packed with vacuum and wooden packing like the one in the pictures. Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I'd like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of "Shenzhen high tech enterprise", "Guangdong high tech enterprise", "national high tech enterprise" and "Shenzhen famous"
