Warranty: | 1 Year | Dimension: | 2700*2300*1550mm |
---|---|---|---|
Pcb Thickness: | 0.5-5mm | Pcb Clamping: | Adjustable Pressure Pneumatic |
No.of Camera: | 5 Sets | Mounting Speed: | 15000-18000CPH |
Components Space: | 0.5mm | Feeding Way: | Electric Feeder With Double Motor |
High Light: | LED Light SMT Pick And Place Machine,SMT Pick And Place Machine 18K CPH |

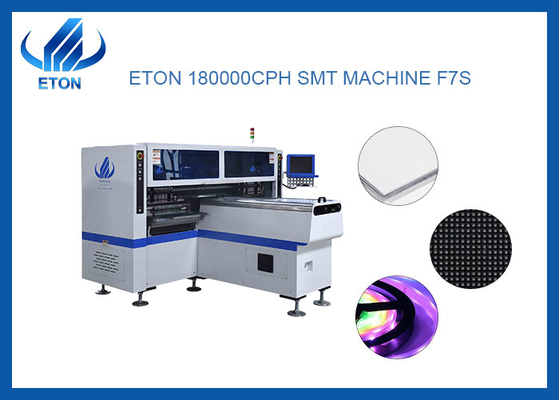

high quality Capacity Reach 18000CPH with lED light SMT pick and place Machine
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.

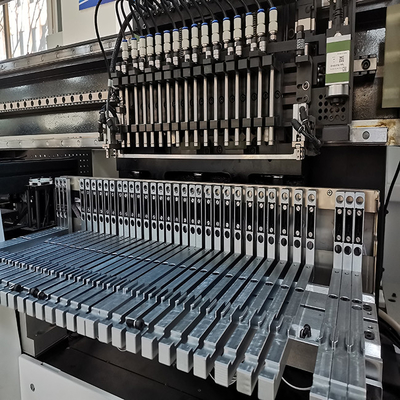

Two mounting modules,18 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: group to take and group to mount.
The speed can reach 15000-18000CPH.

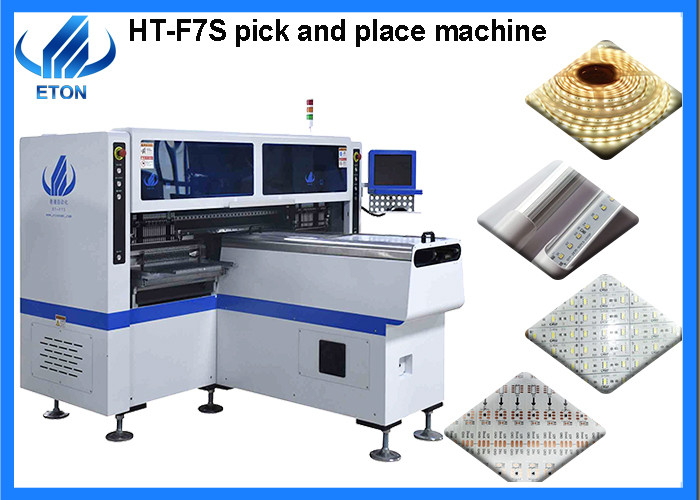

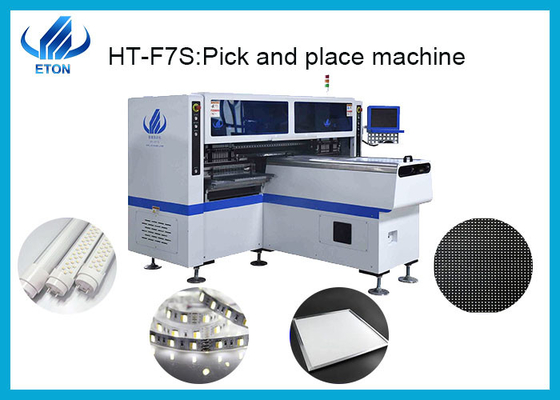

F7S | |
Dimension | 2700*2300*1550mm |
Total weight | 1700kg |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
No.of camera | 5 sets(vision alignment, mark correction) |
Mounting speed | 15000-18000CPH |
Components space | 0.5mm |
No.of feeder | 68PCS |
No.of head | 34 PCS |
Feeding way | Electric feeder with double motor |
Application
Components: LED 3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers,etc.
About exhibition
Company introduction
ETON got more than 14 years R&D experience in SMT industry equipped with core technology. We are the biggest SMT manufacturer in China professional SMT equipment manufacturer , we obtains a number of intellectual property technologies, including 9 invention patents, 112 practical patent, 12 software copyrights.
We have participated in many exhibitions at home and abroad, such as Guangya Exhibition in Guangzhou, Munich Exhibition in Shanghai, Thailand Exhibition ,Mumbai Exhibition, Delhi Exhibition, Turkey Exhibition, Pakistan Exhibition, Egypt Exhibition and so on.
Service
Maintenance period: 1 year.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
FAQ
How is the transportation?
By sea, by air and land transportation.
It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
