Product Details:
Payment & Shipping Terms:
|
| Length: | 3100mm | Width: | 2300mm |
|---|---|---|---|
| Height: | 1550mm | Total Weight: | 1700kg |
| Mounting Mode: | Group Picking And Group Placing | Mounting Height: | <=5mm |
| Mounting Speed: | 200000cph-250000cph | Power: | 380AC50HZ |
| High Light: | SMT Mounting Machine 250k Cph,High Speed Strip SMT Mounting Machine,Strip High Speed Pick And Place Mounter |
||

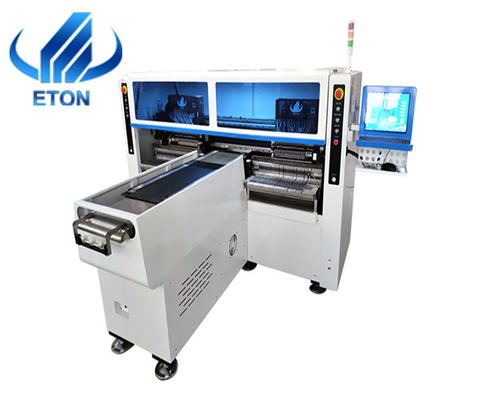

68 feeders 250k cph dual arm high speed pick and place mounter for flexible strip
Product introduction

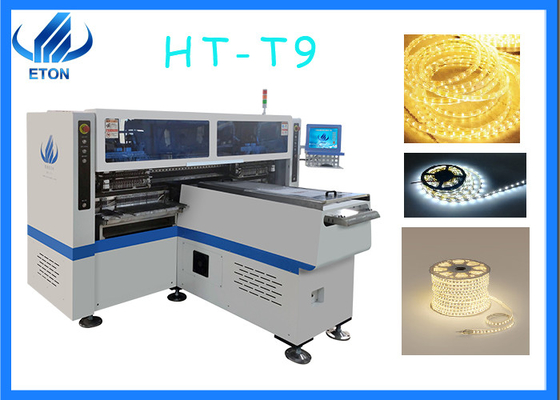

T9 is different from other high-speed machines. It is only for 250 * flexible strips of any length
T9 is an ultra-high speed machine. Compared with t7s, T9 has higher production capacity, up to 250000cph per hour. The main difference is that the number of heads is different. T7s has only 34 heads, while T9 has 68 heads, resulting in different production capacity. Its PCB clamping method is also different from other high-speed machines. It adopts vacuum adsorption, cylinder splint and adjustable track width. Soft light strip - as the name suggests: it is made of software, and the PCB board itself is very thin. If it is not fixed, the PCB board will move. This affects the mounting.
Feature
Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.
Machine parameters
| length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting Mode | Group picking and separately placing |
| Repeat mounting Precision | ±0.02mm (Repeat precision) |
| No. of Camera | 5 PCS ( Digital camera) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
Company
Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
Exhibition
We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Service
Five-star Services
Free Installation
Free Technical Training
Free Technical Support
Free Warranty
Free Software Upgrade
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to your factory to train your staff for you .
Q: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
Q:What kind of service I can have, if I buy machine from ETON ?
A:We will give you install and training. It is free for you. And we will sent engineer with you.
