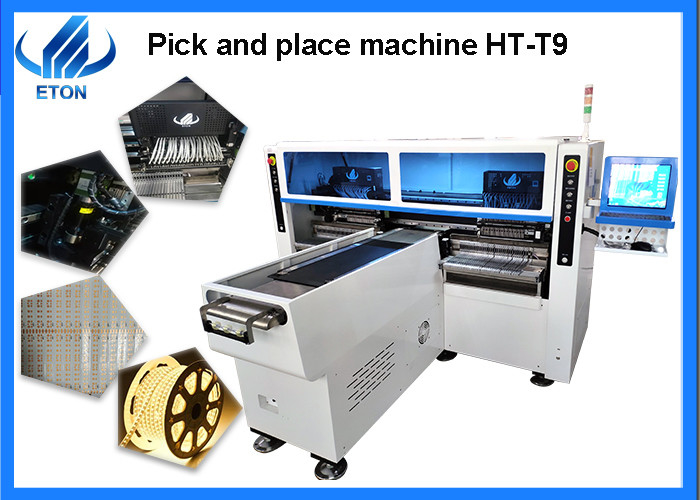

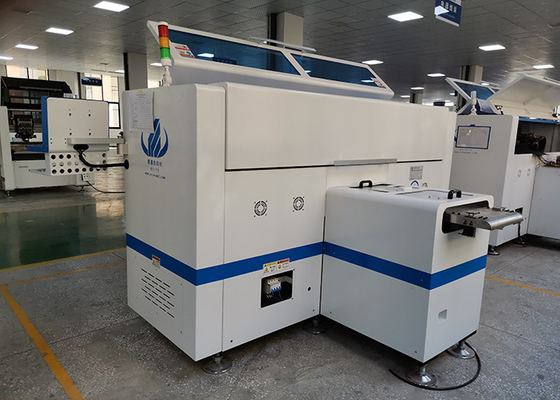

Dual Arm High Speed Pick And Place Machine 250k CHP High Speed

Dual arm capacity reach 250000CHP highspeed mounter for any length flexible

Product description

Dual arm pick and place machine, producing with 4 types materials at the same time.

5 sets of camera, vision alignment, Mark correction.

It can be matched with automatic production line or semi-automatic production line, efficient and fast production.

Feeders 68pcs head 68pcs

Product features

1.Producing with 4 types materials at the same time with high capacity, available for 5m, 50m, or any length of flexible strip and Roll to Roll.

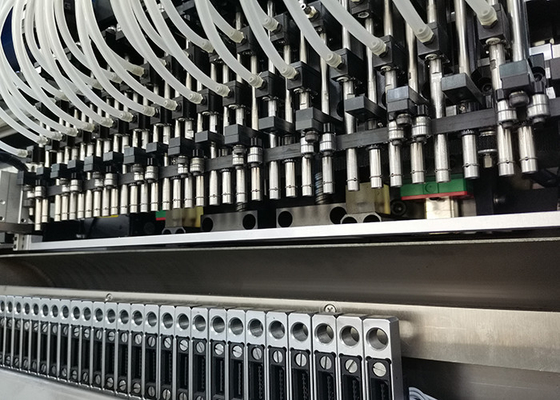

2.Dual arm four module, 18 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

3.Calibration automatically, high precision, available for RGB.

Introduction to structure and function of Mounter

1. Frame is the foundation of the machine. All transmission, positioning organization and feeder are firmly fixed on it. Therefore, it is necessary to have satisfactory mechanical strength and rigidity.
2. PCB transmission and bearing organization - the transmission organization is an ultra-thin belt transmission system placed on the guide rail. Its function is to send the PCB to the predetermined position, and then send it to the next process after pasting.
3. Drive system - it is the key organization of the mounter and the primary index to evaluate the accuracy of the mounter. It includes XYZ transmission layout and servo system. Its functions include supporting the movement of the mounting head and supporting the bearing plane of PCB.

SMT production line

Application

Availble for 5M, 50M or any length flexible strip and Roll to Roll.Two module, producing 4 types materials at the same time.

Package

Our machine are packed in vacuum wooden cases, in order to prevent chemical reaction with some components during transportation, so as to better protect the machine itself.

The salesman tracks the delivery process and records the whole loading process to ensure no erro in loading

After loading, when the goods arrive at the port, we will cooperate with the forwarder to do customs clearance procedures.

Favorable Reviews

Our products are exported to many countries and are loved by many customers

FAQ

Q: Is hard to use these machines?

A: No, not at all. All our machine are automatic, you just type in the program and it will work. The operation is relatively simple and I believed that certainly learn in two days.

Q: Is the software for these machine in English?

A: Yes. Our software is independently developed, there are two version in English and Chinese.

Q:Do you have offices and local engineers in overseas?

Yes, we have established offices and local engineers in Egypt, Turkey and India,etc

Q:What is the difference between semi-automatic production line and full-automatic production line?

A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line

Q:How can we buy from us?

A: Pick and place machine, smt production line, stencil printer, reflow oven, load/unload machine, feeder,nozzle,etc.
